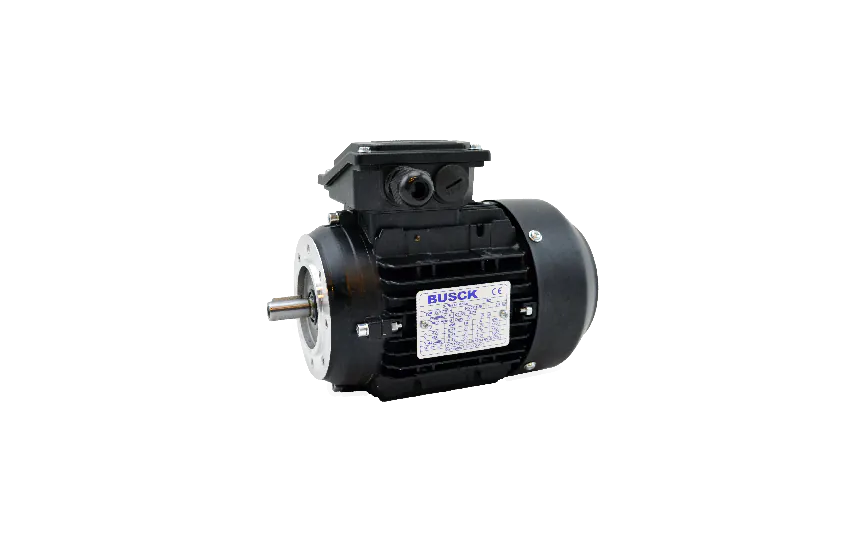

The Busck T2A71C‑6HM is a compact 6-pole IEC-standard AC motor with a rated output of 0.37 kW and a speed of 900 RPM, designed for reliable low-speed operation. The motor features a B14 flange mounting and Ø14 mm shaft, suitable for space-saving applications.

Its Totally Enclosed Fan Cooled (TEFC) design with IP55 protection ensures dependable use in dusty or humid environments. The motor supports S1 continuous operation, is built with Class F insulation, and fits the IEC 71 frame size.

It provides a starting torque of 2.3 Nm, a nominal torque of 2.5 Nm, and a start current ratio of 3.7 IA/IN. The motor achieves IE2 efficiency class and operates at 67.6% efficiency at full load.

Key Features:

• Rated power: 0.37 kW

• Speed: 900 RPM

• Mounting: B14 flange

• Shaft diameter: Ø14 mm

• Starting torque: 2.3 Nm

• Nominal torque: 2.5 Nm

• Start current ratio: 3.7 IA/IN

• Efficiency: IE2 – 67.6%

• Voltage: 230/400 V, 50 Hz

• Duty type: S1 continuous

• Protection class: IP55

• Cooling type: TEFC

• Frame size: IEC 71

• Insulation class: F

• Housing: Aluminium
