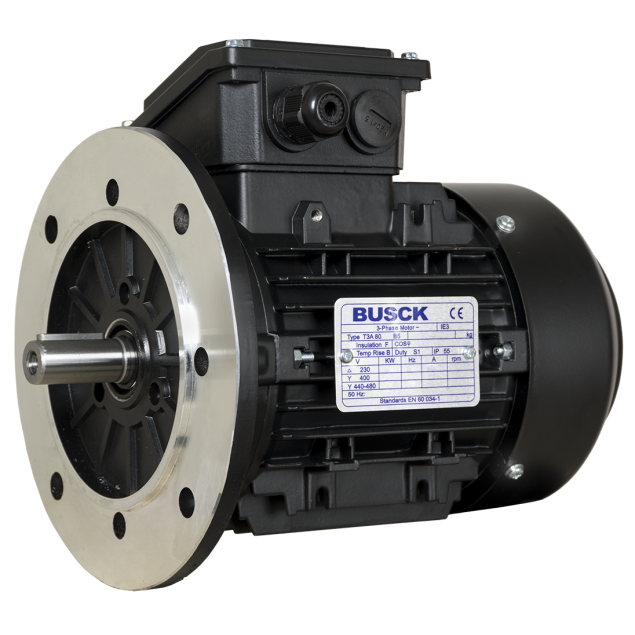

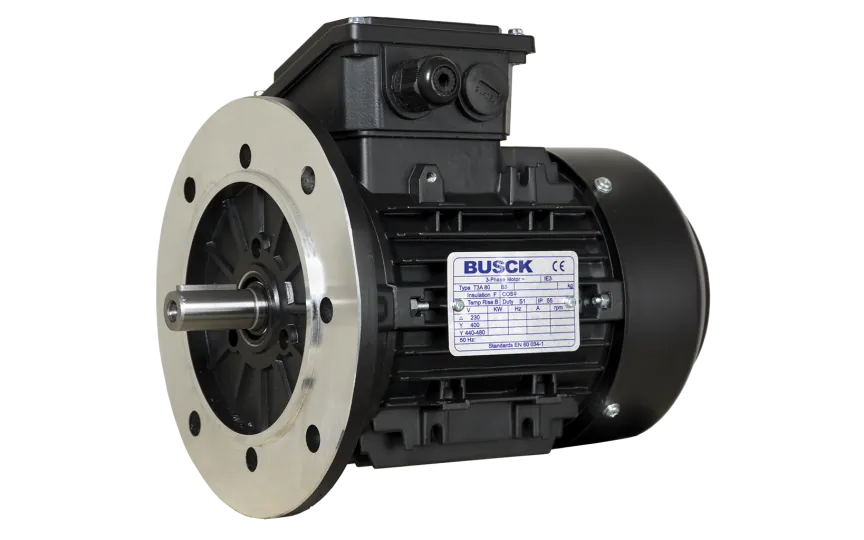

Busck AC motor T2A71B-2B34, 0,55kW, 2860RPM, B34, 230/400, 50 Hz, Aluminium

T2A71B-2B5

The Busck AC Motor T2A71B-2B34 is a robust electric motor designed for industrial use. It features a rated output of 0.55 kW and a rated speed of 2800 RPM, with a maximum speed of 2860 RPM. The motor complies with IE2 efficiency standards and follows the IEC 90 norm. It is built with 2 poles and includes TEFC cooling for effective heat management. The shaft diameter is Ø14 mm, and it supports B34 mounting. Operating on a voltage connection of 230/400 V, 50 Hz, it is housed in lightweight aluminium. Additional features include an IP55 protection class and a bolt circle diameter (BCD) of 130 mm.

€252.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

The Busck T2A71B-2B34 is a compact IEC-standard AC motor delivering 0.55 kW at 2860 RPM (2-pole). Featuring a B34 mounting configuration (foot and flange mount) in an IEC 71 frame, it offers flexibility for integration into compact machines with restricted installation space.

The motor includes a Ø14 mm shaft, an IP55 enclosure, and a Totally Enclosed Fan Cooled (TEFC) design to ensure durability in demanding environments. Built for continuous duty (S1), it comes with Class F insulation.

It delivers a starting torque of 2.3 Nm, a rated torque of 1.84 Nm, and a start current ratio of 2.3 IA/IN. The full-load efficiency is rated at 75.1%.

Key Features:
