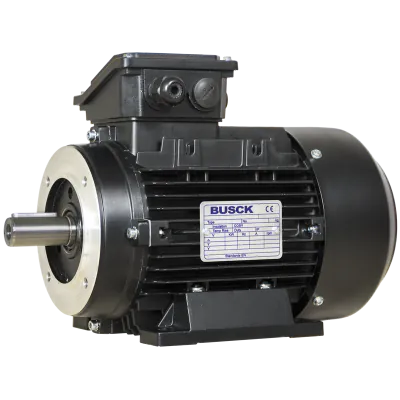

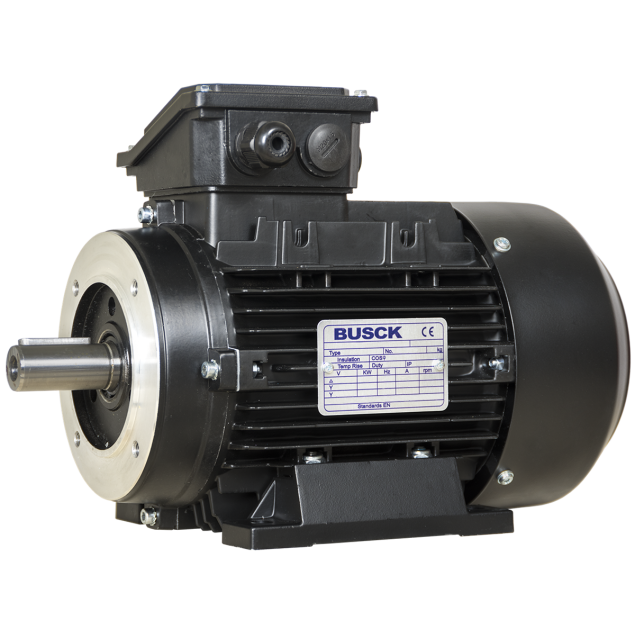

Busck AC motor T2A71B-2B34, 0,55kW, 2860RPM, B34, 230/400, 50 Hz, Aluminium
T2A71B-2B34The Busck AC Motor T2A71B-2B34 is a robust electric motor designed for industrial applications. It delivers a rated output of 0.55 kW and operates at a speed of 2860 RPM. The motor features a 2-pole configuration and conforms to IEC frame size 90. Built with a B34 mounting and a shaft diameter of Ø14 mm, it supports flexible integration. Constructed from aluminium, it ensures efficient thermal conductivity and a lightweight design. The motor has TEFC cooling, a BCD of 85 mm, and complies with the IE2 efficiency standard. It operates with a voltage connection of 230/400 V and meets IP55 protection class requirements.
Specifications
Product description
Downloads
€258.00
Made to order
Expected shipment:
Loading...
More Information
IP classification
IP 55
Model
T2A71B-2B34
Speed (RPM)
2860
Rated output (kW)
0.55
Efficiency (% FL)
75.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.21/1.27
Nominal torque (Nm)
1.84
Start current ratio (IA/IN)
2.3
Mounting
B34
BCD
85
Poles
2
Efficiency standard
IE2
Shaft diameter (mm)
Ø14
Cooling
TEFC
HS-Code
85015100.000000
Description
Key features:
- IP55 rating: Provides protection against dust and water ingress, enhancing motor durability and safety.
- High power output: Boasts a powerful 0.55kW motor, delivering impressive performance for a wide range of applications.
- High speed: Operates at a rapid 2860RPM, optimizing efficiency and productivity.
- Voltage flexibility: Compatible with 230/400V power supply, providing adaptability to different electrical systems.
- B14 flange: The motor is equipped with a B34 flange, ensuring easy installation and integration into various equipment setups.
- High efficiency: IE2-75.1 efficiency rating, promoting energy savings and reduced operational costs.
Specifications:
- Robust construction: Built with high-quality aluminum materials, ensuring sturdiness and longevity.
- Wide temperature range: Capable of functioning reliably in temperatures ranging from -20°C to +40°C, making it suitable for diverse environments.
