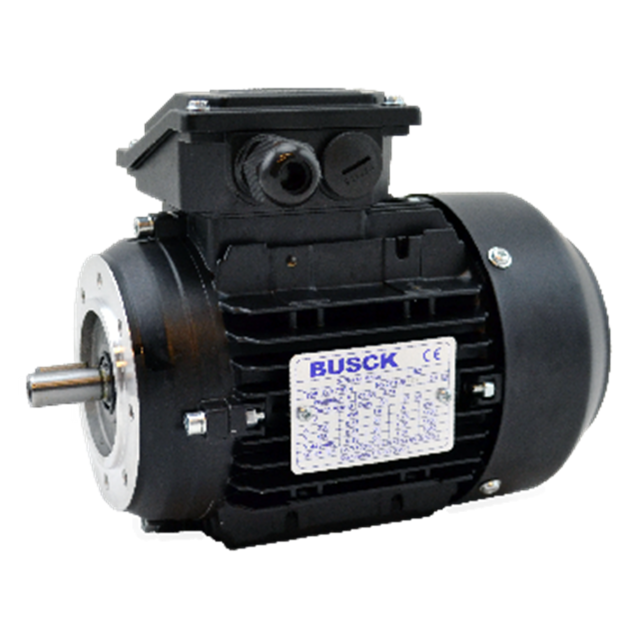

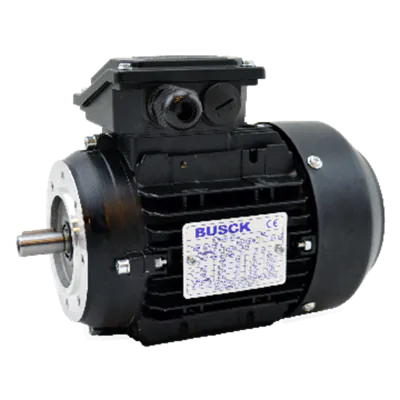

The Busck T2A71A‑6HM is a 6-pole IEC-standard AC motor rated at 0.18 kW and delivering 900 RPM, ideal for low-speed industrial applications. It features a B14 flange mounting and a Ø14 mm shaft, optimized for space-efficient installations.

With a Totally Enclosed Fan Cooled (TEFC) design and IP55 protection, this motor is engineered for dependable S1 continuous-duty operation in dusty or humid environments. The motor incorporates Class F insulation and is housed in an IEC 71 aluminium frame.

It delivers a starting torque of 1.8 Nm, nominal torque of 1.2 Nm, and a start current ratio of 3.1 IA/IN. The unit meets IE2 energy efficiency and operates with an efficiency of 56.6% at full load.

Key Features:

• Rated power: 0.18 kW

• Speed: 900 RPM

• Mounting: B14 flange

• Shaft diameter: Ø14 mm

• Starting torque: 1.8 Nm

• Nominal torque: 1.2 Nm

• Start current ratio: 3.1 IA/IN

• Efficiency: IE2 – 56.6%

• Voltage: 230/400 V, 50 Hz

• Duty type: S1 continuous

• Protection class: IP55

• Cooling type: TEFC

• Frame size: IEC 71

• Insulation class: F

• Housing: Aluminium
