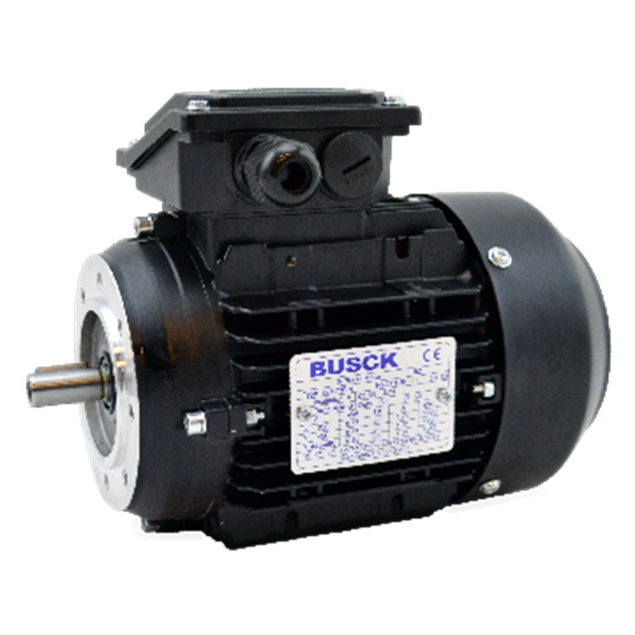

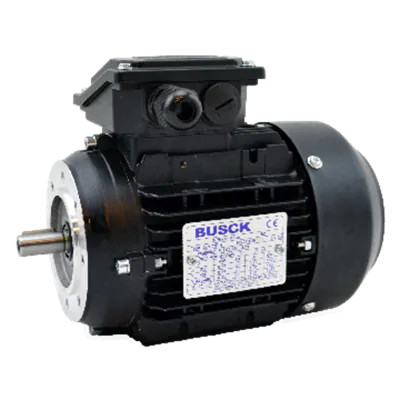

The Busck T2A71A‑2HM is a 2-pole IEC-standard AC motor rated at 0.37 kW and operating at 2840 RPM. Featuring a B14 flange and Ø14 mm shaft, it is designed for compact integration in high-speed industrial systems.

Built with an IP55-rated Totally Enclosed Fan Cooled (TEFC) enclosure, the motor is protected against dust and water spray. It supports S1 continuous duty and is insulated to Class F, ensuring robust and reliable performance. With a starting torque of 2.2 Nm, nominal torque of 1.24 Nm, and a start current ratio of 5.1 IA/IN, it offers solid dynamic characteristics in startup conditions.

The motor meets IE2 efficiency class and achieves a 71.5% efficiency at full load.

Key Features:

• Rated power: 0.37 kW

• Speed: 2840 RPM

• Mounting: B14 flange

• Shaft diameter: Ø14 mm

• Starting torque: 2.2 Nm

• Nominal torque: 1.24 Nm

• Start current ratio: 5.1 IA/IN

• Efficiency: IE2 – 71.5%

• Voltage: 230/400 V, 50 Hz

• Duty type: S1 continuous

• Protection class: IP55

• Cooling type: TEFC

• Frame size: IEC 71

• Insulation class: F
