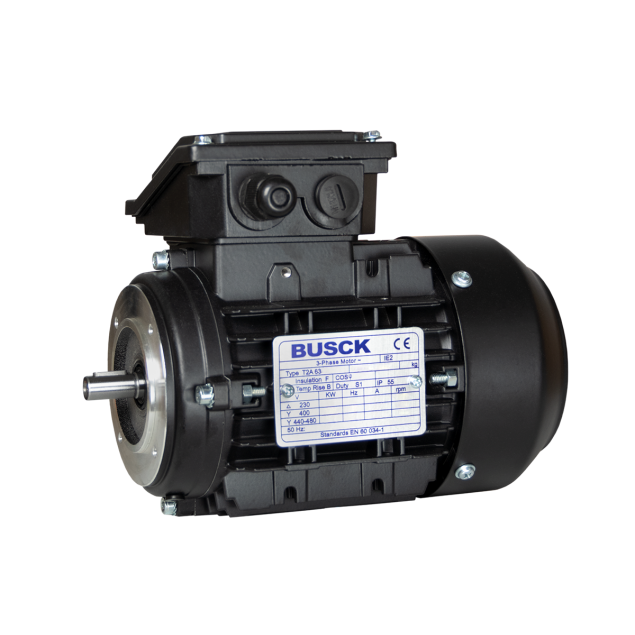

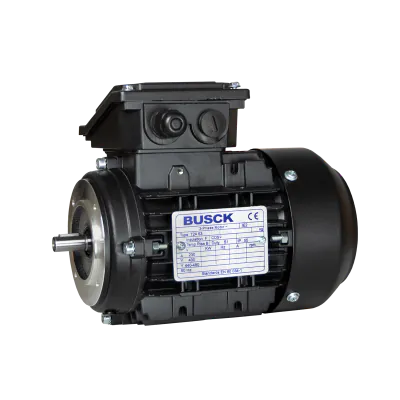

Busck AC motor T2A63C-4, 0,25kW, 1360RPM, B14, 230/400, 50 Hz, Aluminium
T2A63C-4The Busck AC motor T2A63C-4 is a compact IEC aluminium motor designed for versatile use in small machinery and auxiliary drives. Delivering a rated output of 0.25 kW, a nominal speed of 1360 RPM (4-pole), and a torque of 1.76 Nm, this motor provides dependable performance for continuous-duty applications.
It features an IP55 enclosure, protecting against dust ingress and water jets, and is built with a TEFC (Totally Enclosed Fan-Cooled) design for durability in industrial environments. The B14 flange mounting allows flexible installation in gearboxes, pumps, and automation systems.
Classified under the IE2 efficiency standard, the motor achieves an efficiency of 68.5%, ensuring a reliable balance between energy performance and cost-effectiveness.
Made to order
Expected shipment:
More Information
Description
The Busck T2A63C‑4 is a compact IEC-standard AC motor delivering 0.25 kW at 1360 RPM in a 4-pole configuration. Designed with a B14 face mounting and Ø11 mm shaft, it is ideal for space-saving installations in light-duty applications.
The motor is built with an IP55-rated Totally Enclosed Fan Cooled (TEFC) enclosure for protection in dusty and humid environments. It supports S1 continuous duty and features Class F insulation for temperature resilience. With a starting torque of 2.0 Nm and a nominal torque of 1.76 Nm, it delivers stable performance during startup and operation.
This unit meets IE2 energy efficiency class with 68.5% full-load efficiency, ensuring compliance with standard energy-saving requirements.
Key Features:
-
Compact IEC aluminium motor – lightweight and robust for industrial applications.
-
IP55 protection – shields against dust and water jets for long-term reliability.
-
B14 flange mounting – small flange design for flexible installation in machinery.
-
TEFC cooling – prevents ingress of contaminants, extending service life.
-
0.25 kW, 1360 RPM (4-pole) – delivers 1.76 Nm torque for continuous-duty drives.
-
IE2 efficiency class – meets European energy efficiency requirements
