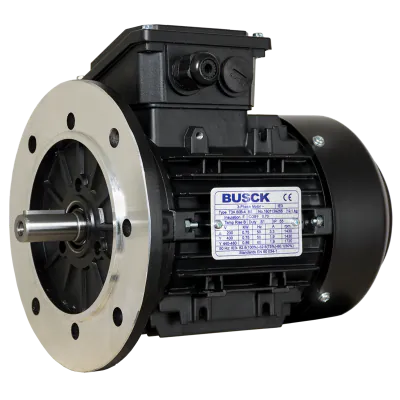

Busck AC motor T2A63B-6B5, 0,12kW, 850RPM, B5, 230/400, 50 Hz, Aluminium
T2A63B-6B5The Busck AC motor T2A63B-6B5 is a compact IEC aluminium motor designed for applications requiring low-speed, reliable performance. With a rated output of 0.12 kW, a nominal speed of 850 RPM (6-pole), and a torque of 1.35 Nm, it is an excellent choice for smaller drive systems and auxiliary equipment.
This motor is built with an IP55 enclosure for protection against dust and water jets and features a TEFC (Totally Enclosed Fan-Cooled) design, ensuring consistent operation in industrial environments. The B5 flange mounting makes integration with pumps, gearboxes, and machinery straightforward.
Certified according to IE2 efficiency standards, this motor balances performance and efficiency in its size class.
Made to order
Expected shipment:
More Information
Description
The Busck T2A63B-6B5 is a compact IEC-compliant asynchronous motor rated at 0.12 kW and delivering 900 RPM (6-pole) at 50 Hz. Constructed in an IEC 63 frame with B5 flange mounting and an Ø11 mm shaft, this motor is well-suited for light-duty or auxiliary drive applications.
Designed for continuous S1 duty, the unit features an IP55 TEFC (Totally Enclosed Fan Cooled) aluminium housing and Class F insulation. It delivers a starting torque of 1.3 Nm, a rated torque of 1.27 Nm, and a start current ratio of 2.7 IA/IN. The full-load efficiency is 50.6%.
Key Features:
-
Compact IEC aluminium motor – lightweight and robust for flexible installation.
-
IP55 protection – safeguards against dust ingress and water jets.
-
B5 flange mounting – standardized mounting for gearboxes, pumps, and equipment.
-
6-pole motor, 850 RPM – delivers 1.35 Nm torque for low-speed applications.
-
TEFC cooling – prevents dust and contaminants from entering the motor.
-
IE2 efficiency class – compliant with European standards
