Busck AC motor T2A63B-4B34, 0,18kW, 1350RPM, B34, 230/400, 50 Hz, Aluminium

T2A63B-4B34

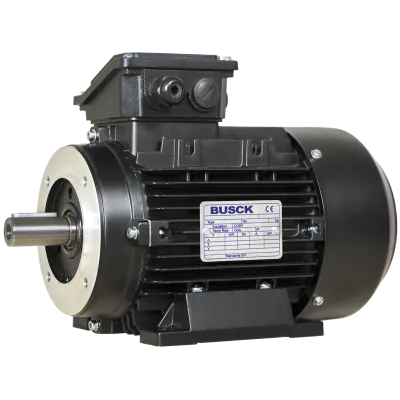

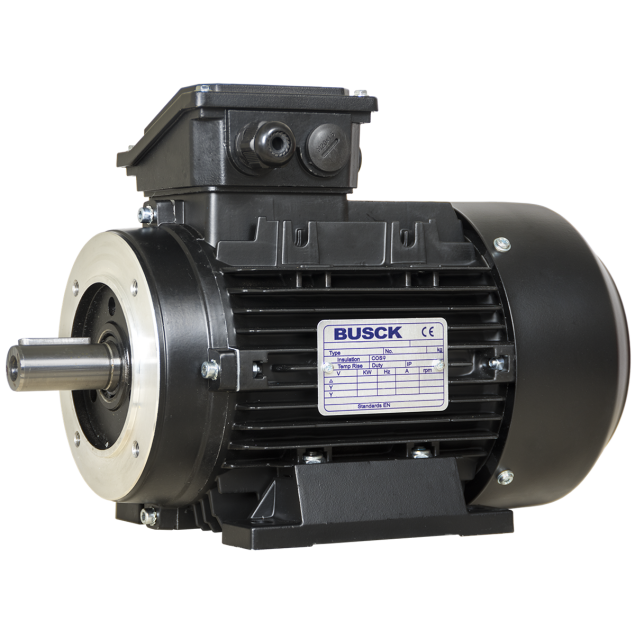

The Busck AC Motor T2A63B-4B34 is a robust electric motor designed for reliable industrial operation. It offers a rated output of 0.18 kW and a rated speed of 1400 RPM, with actual operating speed at 1350 RPM. The motor complies with the IE2 efficiency standard and follows the IEC 63 frame size norm. Equipped with 4 poles, it features TEFC cooling and an IP55 protection rating for use in demanding environments. The motor has a B34 mounting configuration and a shaft diameter of Ø11 mm. It is suitable for 230/400 V operation at 50 Hz and has a bolt circle diameter (BCD) of 75 mm. The housing is made from aluminium, ensuring durability and corrosion resistance.

€196.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

The Busck T2A63B-4B34 is a compact AC motor built to IEC standards, delivering 0.18 kW at 1350 RPM (4-pole). Its B34 mounting configuration combines foot and flange mounting for flexible integration in space-limited setups using an IEC 63 frame.

Equipped with an Ø11 mm shaft, IP55 ingress protection, and a Totally Enclosed Fan Cooled (TEFC) housing, this motor is suited for use in dusty and humid environments. It supports S1 continuous operation and features Class F insulation for enhanced thermal durability.

Performance-wise, the unit offers a starting torque of 2.0 Nm, a rated torque of 1.27 Nm, and a start current ratio of 3.6 IA/IN. It delivers a full-load efficiency of 64.7%.

Key Features:
