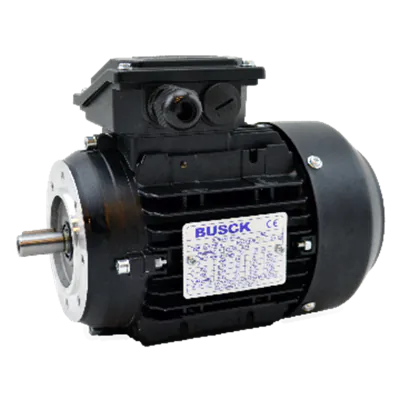

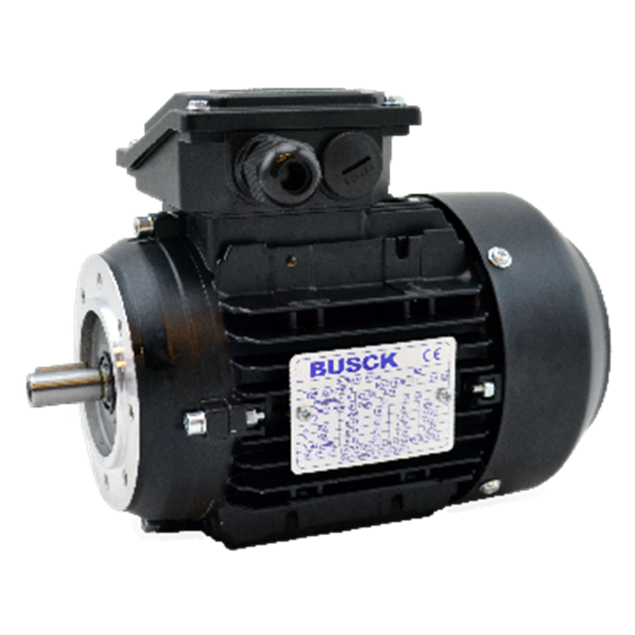

The Busck T2A63B-2HM is a compact IEC-standard AC motor rated at 0.25 kW and running at 2840 RPM (2-pole). Designed with a B14 flange mount, it fits within the IEC 63 frame and is ideal for space-constrained applications.

The motor includes a Ø11 mm shaft and is enclosed in a robust IP55-rated TEFC housing. It supports continuous operation (S1) and is equipped with Class F insulation for thermal stability.

Performance figures include a starting torque of 2.5 Nm, a rated torque of 0.84 Nm, and a start current ratio of 5.2 IA/IN. Full-load efficiency is 69.8%.

Key Features:

• 0.25 kW at 2840 RPM

• B14 mounting, IEC 63 frame

• Shaft diameter: Ø11 mm

• Starting torque: 2.5 Nm

• Rated torque: 0.84 Nm

• Start current ratio: 5.2 IA/IN

• IP55 enclosure, TEFC cooled

• Insulation class F, S1 duty

• Efficiency: 69.8%
