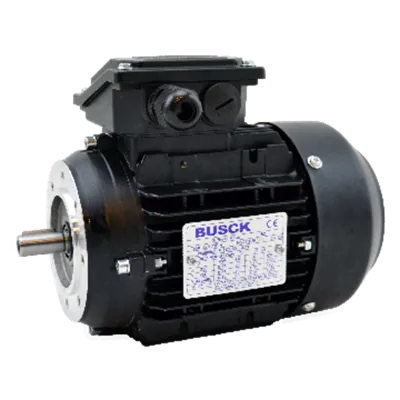

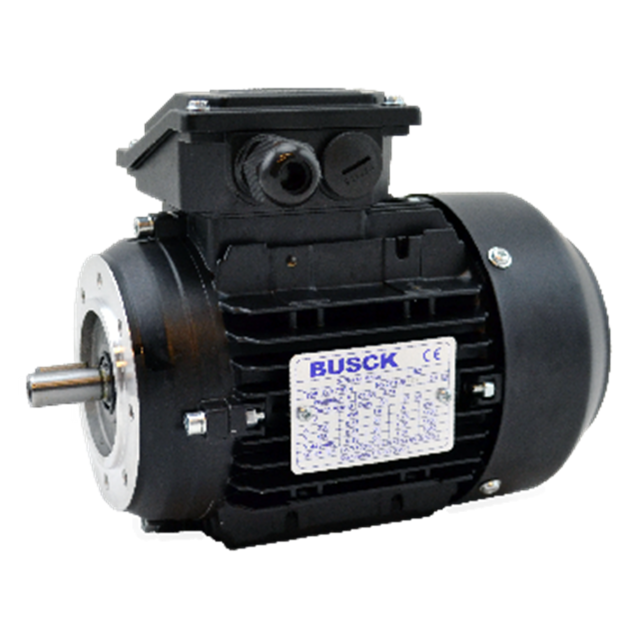

Busck AC motor T2A63A-4HM, 0,12kW, 1395RPM, B14 8-hole flange, 230/400, 50 Hz
T2A63A-4HMThis 0.12 kW IEC-standard motor from Busck features a 4-pole winding (1395 RPM) and is equipped with a B14 face flange with 8 mounting holes, offering compact integration and secure installation. The Ø11 mm shaft and IP55-rated Totally Enclosed Fan Cooled (TEFC) housing provide robust performance in demanding environments. With an efficiency of 60.1%, the motor is a reliable choice for smaller machines and gear assemblies requiring precise fit and space-saving design.
Made to order
Expected shipment:
More Information
Description
The Busck T2A63A-4HM is a 0.12 kW IEC-compliant AC motor operating at 1395 RPM (4-pole). Built for compact automation and machinery setups, it features a B14 flange mounting and fits the IEC 63 frame size.
Equipped with a Ø11 mm shaft, the motor is housed in an IP55 TEFC enclosure for reliable protection against dust and moisture. It is rated for S1 continuous duty and uses Class F insulation for enhanced thermal performance.
Key operational parameters include a starting torque of 2.2 Nm, rated torque of 0.82 Nm, and a start current ratio of 3.5 IA/IN. Full-load efficiency is rated at 60.1%.
Key Features:
-
0.12 kW at 1395 RPM
-
B14 mounting, IEC 63 frame
-
Shaft diameter: Ø11 mm
-
Starting torque: 2.2 Nm
-
Rated torque: 0.82 Nm
-
Start current ratio: 3.5 IA/IN
-
IP55 ingress protection, TEFC cooling
-
Insulation class F, duty type S1
-
Efficiency: 60.1%
