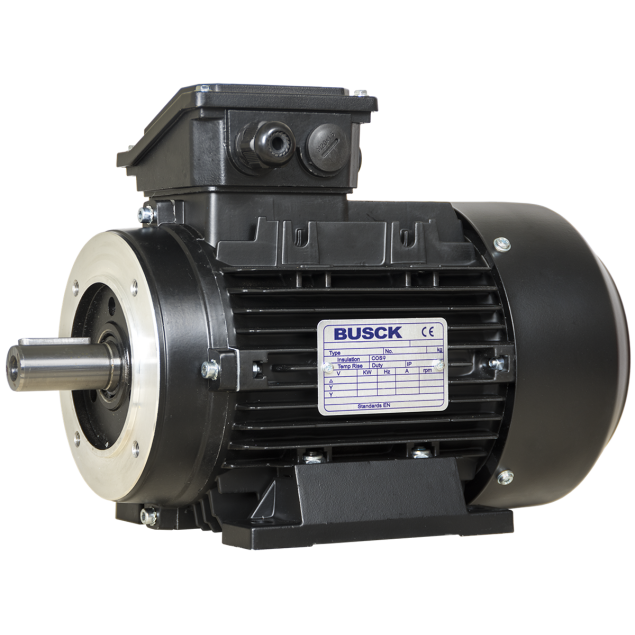

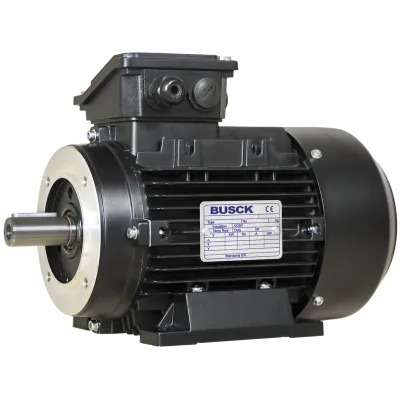

Busck AC motor T2A63A-4B34, 0,12kW, 1395RPM, B34, 230/400, 50 Hz, Aluminium

T2A63A-4 B34
The Busck AC Motor T2A63A-4B34 is a compact and efficient electric motor designed for industrial applications. It features a rated output of 0.12 kW and a rated speed of 1395 RPM. This model has 4 poles and a shaft diameter of Ø11 mm. With a mounting type B34 and body size IEC 63, it offers flexible installation options. The motor uses TEFC (Totally Enclosed Fan Cooled) motor cooling and complies with the IE2 efficiency standard. Additional specifications include a voltage connection of 230/400 V, IP55 protection classification, and a bolt circle diameter (BCD) of 75 mm. The motor housing is made of aluminium for durability.
€185.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key Features – Busck AC Motor T2A63A-4B34

  • Rated output: 0.12 kW

  • Speed: 1395 RPM (4-pole)

  • Nominal torque: 0.82 Nm

  • Voltage connection: 230/400 V (Δ/Y)

  • Current draw: 0.77/0.44 A

  • Start current ratio: 3.5

  • Mounting form: B34 (foot & flange combined)

  • Shaft diameter: Ø11 mm

  • Bolt circle diameter (BCD): 75 mm

  • Housing material: Aluminium

  • Cooling type: TEFC (Totally Enclosed Fan Cooled)

  • Protection class: IP55

  • Efficiency standard: IE2

Advantages

Compact design – small frame size suitable for installations with limited space.

Flexible mounting – B34 form enables both foot and flange mounting.

Durable aluminium housing – lightweight, corrosion-resistant, and thermally efficient.

Reliable protection – IP55 safeguards against dust and water spray in industrial environments.

Energy-efficient operation – meets IE2 efficiency standard for reduced energy consumption.

Stable performance – 4-pole design delivers smooth operation and dependable torque.

Versatile use – suitable for light-duty machinery, conveyors, fans, and automation systems.

Specifications

IP classification
IP 55
Model
T2A63A-4B34
Speed (RPM)
1395
Rated output (kW)
0.12
Efficiency (% FL)
60.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
0.77/0.44
Nominal torque (Nm)
0.82
Start current ratio (IA/IN)
3.5
Mounting
B34
BCD
75
Poles
4
Efficiency standard
IE2
Shaft diameter (mm)
Ø11
Cooling
TEFC

Downloads

3dfile 3dfile step dataSheet dataSheet pdf brochure brochure pdf installationManual installationManual pdf

Foreign trade

HS-Code
85015100
ERP net weight (Kg)
6.00
Country of origin
CHN
