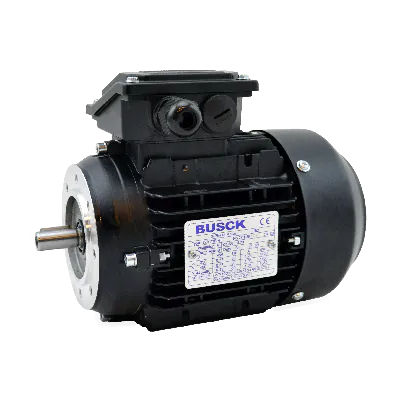

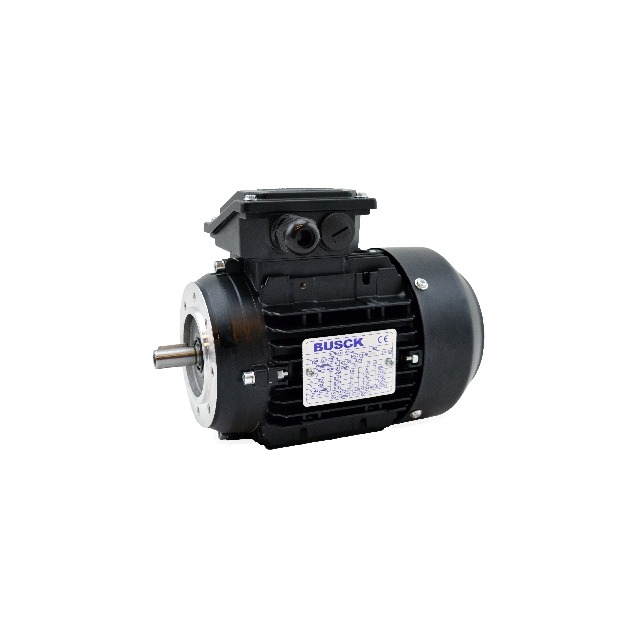

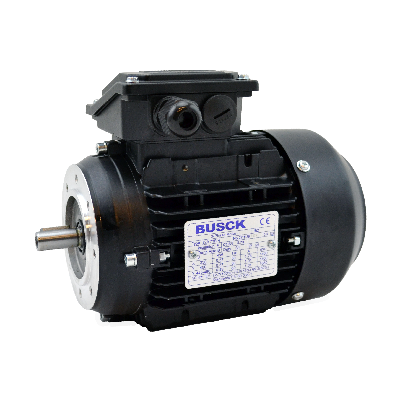

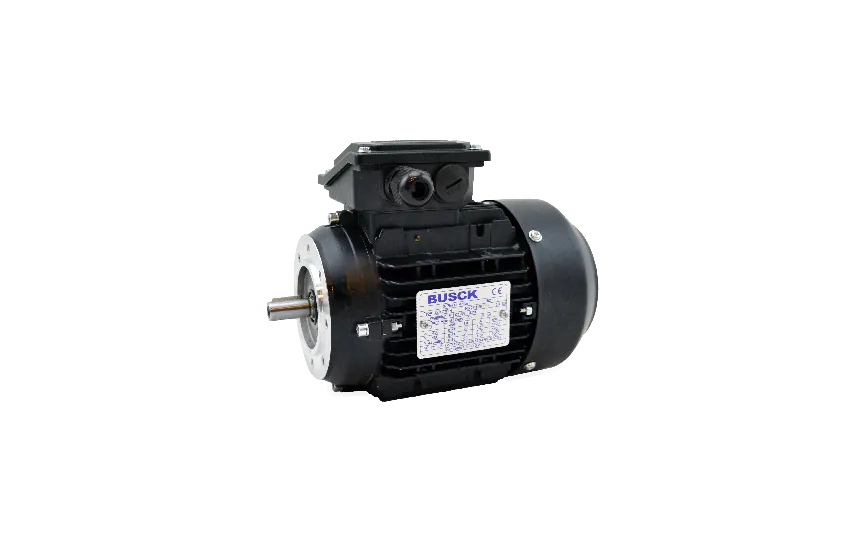

Busck AC motor T2A56C-4HM, 0,12kW, 1375RPM, B14 8-hole flange, 230/400, 50 Hz
T2A56C-4HMThis compact 0.12 kW IEC standard motor from Busck features a 4-pole winding (1375 RPM) and is designed with a B14 face flange with 8 mounting holes, suitable for applications requiring secure and space-efficient mounting. The motor includes a Ø9 mm shaft and is built to IP55 specifications with a Totally Enclosed Fan Cooled (TEFC) housing, ensuring reliable performance in dusty or damp environments. Efficiency is rated at 59.1%, and the motor is ideal for smaller machinery or gear units where footprint and integration flexibility are key.
Made to order
Expected shipment:
More Information
Description
The Busck T2A56C-4HM is a compact IEC-standard AC motor rated at 0.12 kW and running at 1375 RPM (4-pole). Featuring a B14 mounting flange, this motor is suited for applications requiring a small footprint and integration flexibility within IEC 56 frames.
The motor is designed with a Ø9 mm shaft, IP55 ingress protection, and a Totally Enclosed Fan Cooled (TEFC) housing. It supports S1 continuous duty and includes Class F insulation for reliable performance under varying thermal loads.
Performance metrics include a starting torque of 3.3 Nm, a rated torque of 0.83 Nm, and a start current ratio of 3.6 IA/IN. The motor achieves a full-load efficiency of 59.1%.
Key Features:
-
0.12 kW at 1375 RPM
-
B14 mounting, IEC 56 frame
-
Shaft diameter: Ø9 mm
-
Starting torque: 3.3 Nm
-
Rated torque: 0.83 Nm
-
Start current ratio: 3.6 IA/IN
-
IP55 protection, TEFC cooling
-
Insulation class F, S1 duty
-
Efficiency: 59.1%
