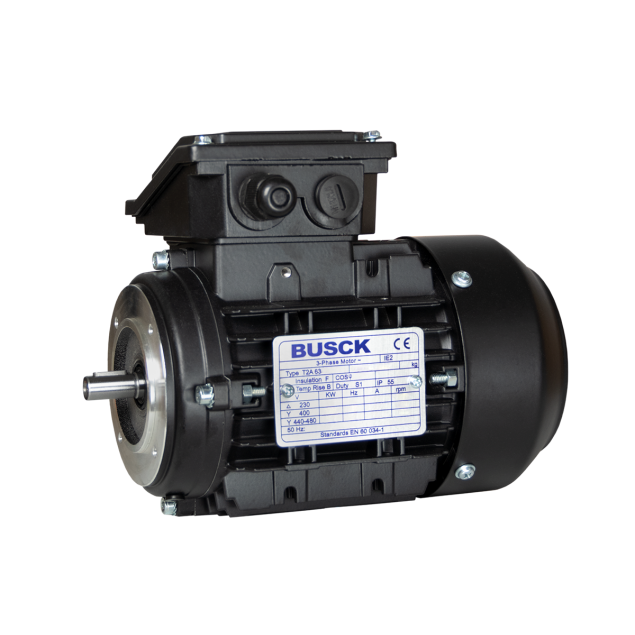

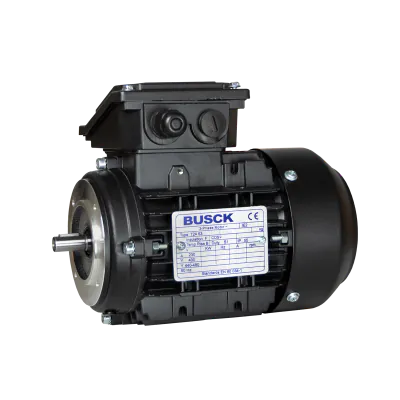

Busck AC-motor ME56B-4, 0.09kW, 1400RPM, 230/400V, 50Hz, IP55, B14 flange
ME56B-4The Busck AC Motor ME56B-4 is a compact and reliable electric motor designed for industrial applications. It delivers a rated output of 0.09 kW at a rated speed of 1400 RPM. Built to IEC norm 56 with a shaft diameter of Ø9 mm, it features a B14 flange mounting and meets the IE1 efficiency standard. The motor housing is made of aluminium and offers TEFC cooling for reliable thermal management. Operates on a 230/400 V, 50 Hz power supply with 4 poles. The IP55 classification ensures resistance to dust and water, while the BCD of 65 mm supports flexible installation. Manufacturer: Busck.
Specifications
Product description
Downloads
€125.88
In stock
Expected shipment:
Loading...
More Information
IP classification
IP 55
Model
ME56B-4
Speed (RPM)
1400
Rated output (kW)
0.09
Efficiency (% FL)
56.2
Voltage connection (Δ/Y)
230/400
Rated current at voltage
0,68/0,39
Nominal torque (Nm)
0.61
Start current ratio (IA/IN)
4
Mounting
B14
BCD
65
Poles
4
Efficiency standard
IE1
Shaft diameter (mm)
Ø9
Cooling
TEFC
HS-Code
85015100.000000
Description
-
Motor type: AC induction motor
-
Model: ME56B-4
-
Power: 0.09 kW
-
Nominal speed: 1400 RPM
-
Voltage: 230/400V Δ/Y
-
Torque (full load): 0.61 Nm
-
Starting torque: 2.3
-
Breakaway torque factor: 2.8
-
Number of poles: 4
-
Efficiency class: IE1
-
Enclosure: TEFC
-
Protection class: IP55
-
Housing material: Aluminium
-
Shaft diameter: Ø9 mm
