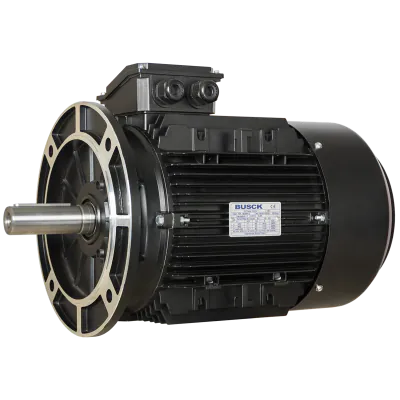

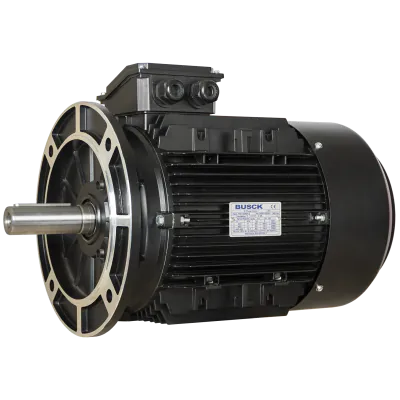

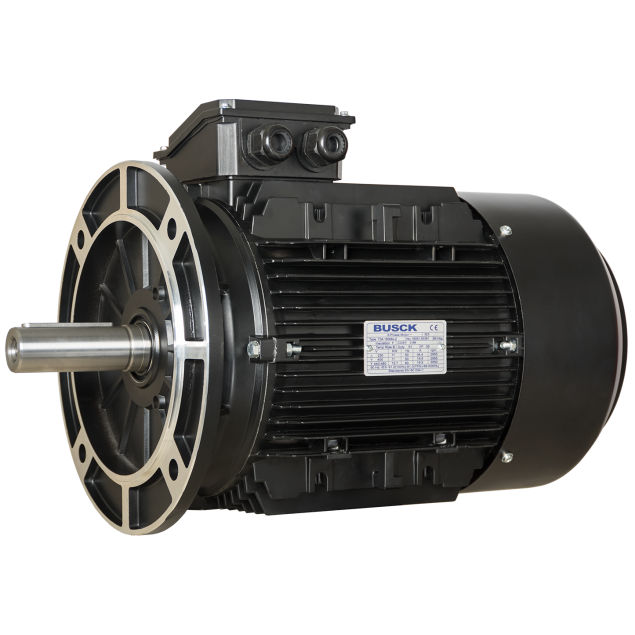

Busck AC motor T3A160M-6B5, 7.5kW, 975RPM, 400/690V, 50Hz, aluminium
T3A160M-6B5The Busck AC Motor is a three-phase synchronous motor designed to excel in demanding industrial applications. Engineered with precision and constructed using high-quality materials, this motor guarantees performance and longevity even in harsh environments.
Specifications
Product description
Downloads
€3,100.00
Made to order
Expected shipment: 10-04-2025
More Information
IP classification
IP 55
Model
T3A160M-6B5
Speed (RPM)
975
Rated output (kW)
7.5
Efficiency (% FL)
89.1
Voltage connection (Δ/Y)
400/690
Rated current at voltage
16.0/9.19
Nominal torque (Nm)
73.46
Start current ratio (IA/IN)
7.3
Mounting
B5
IEC norm
160
BCD
300
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø42
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- IP55 rating: The motor is protected against dust and water ingress, making it suitable for use in challenging environments.
- High power output: With a power rating of 7.5kW, this motor delivers efficient and consistent performance.
- Optimized speed: The motor operates at 975RPM, striking a balance between speed and torque for optimal operation.
- Energy efficient: Rated as IE3, this motor meets high energy efficiency standards, resulting in reduced energy consumption.
- Wide voltage range: Compatible with both 400V and 690V power systems, offering flexibility in installation.
- B5 flange mounting: The B5 flange design ensures easy and secure installation in various equipment setups.
Specifications:
- Robust construction: Made from aluminium
- Extreme temperature tolerance: -20°C to +40°C.
