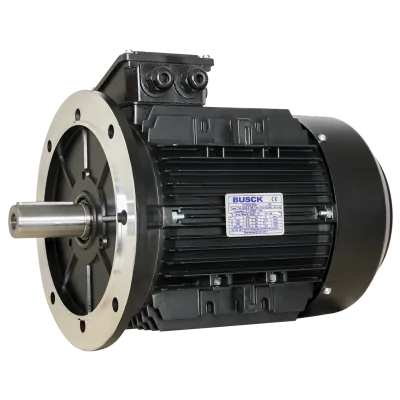

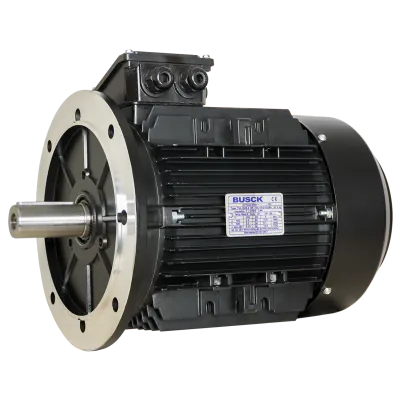

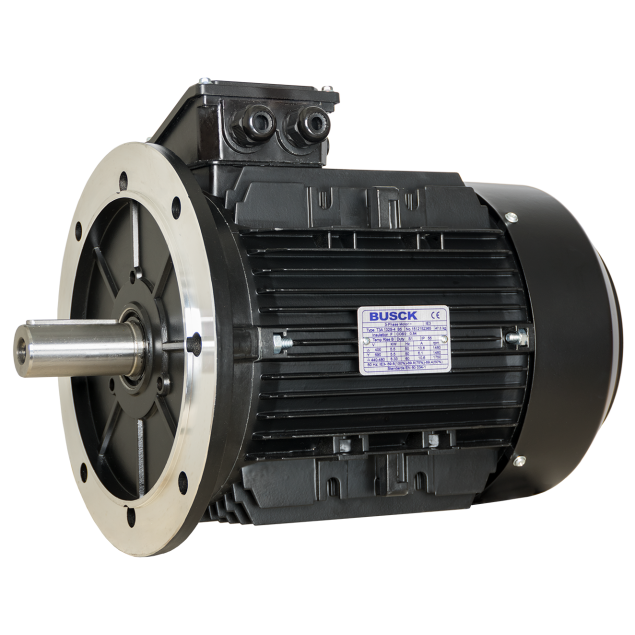

Busck AC motor T3A132SB-2B5, 7.5kW, 2930RPM, 400/690V, 50Hz, aluminium
T3A132SB-2B5The Busck AC motor is a reliable and versatile high-performance three-phase synchronous motor, engineered to excel in demanding environments. Crafted with durability, this motor is built to withstand the harsh conditions and deliver consistent performance.
Specifications
Product description
Downloads
€1,573.00
Made to order
Expected shipment: 14-04-2025
More Information
IP classification
IP 55
Model
T3A132SB-2B5
Speed (RPM)
2930
Rated output (kW)
7.5
Efficiency (% FL)
90.1
Voltage connection (Δ/Y)
400/690
Rated current at voltage
13.35/7.68
Nominal torque (Nm)
24.45
Start current ratio (IA/IN)
11.9
Mounting
B5
IEC norm
132
BCD
265
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Robust and flexible: Built to withstand harsh demands, making it suitable for various industrial applications.
- IP55 rating: Provides protection against dust and water, ensuring reliable operation in challenging environments.
- 7.5kW power output: Delivers high performance and efficiency for demanding tasks.
- 2930RPM speed: Optimized rotational speed for precision and smooth operation.
- 400/690V voltage: Flexible voltage options for compatibility with different power systems.
- B5 flange: Easy to mount and install, allowing seamless integration into existing setups.
- IE3 efficiency: High energy efficiency to minimize power consumption and reduce operating costs.
Specifications:
- Aluminum construction: Durable design in aluminium.
- Temperature Range: -20°C to +40°C.
