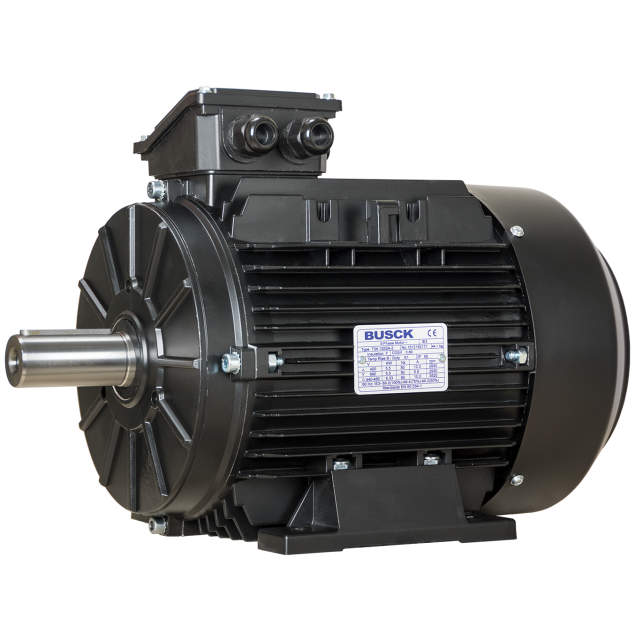

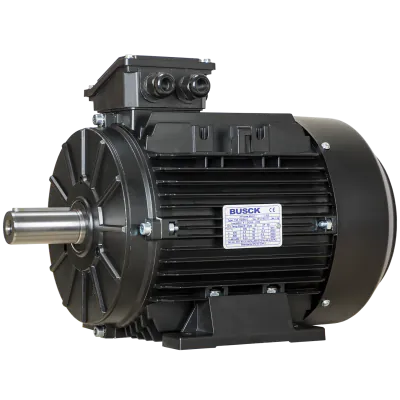

Busck AC motor T3A132SB-2B3, 7.5kW, 2930RPM, 400/690V, 50Hz, aluminium
T3A132SB-2B3The Busck AC motor is a three-phase synchronous motor designed to excel under challenging conditions. Built with precision and utilizing technology, this motor is engineered to withstand harsh demands and deliver performance. With its array of features and specifications, the Busck AC motor is a reliable choice for various industrial applications.
Specifications
Product description
Downloads
€1,522.95
In stock
Expected shipment: 06-12-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A132SB-2B3
Speed (RPM)
2930
Rated output (kW)
7.5
Efficiency (% FL)
90.1
Voltage connection (Δ/Y)
400/690
Rated current at voltage
13.35/7.68
Nominal torque (Nm)
24.45
Start current ratio (IA/IN)
11.9
Mounting
B3
IEC norm
132
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Weather-resistant: IP55 rating protects the motor against dust and water ingress, making it suitable for indoor and outdoor installations.
- High power output: Capable of delivering 7.5kW of power, making it suitable for heavy-duty tasks.
- High speed: Boasting a maximum speed of 2930RPM, ensuring efficient operation across various applications.
- Voltage flexibility: Compatible with both 400V and 690V power supplies.
- B3 flange mount: Designed with a B3 flange, allowing easy installation.
- High efficiency: IE3 energy efficiency rating, reducing energy consumption and minimizing operating costs.
Specifications:
- Robust construction: Crafted from durable aluminum materials.
- Wide temperature range: -20°C to +40°C.
