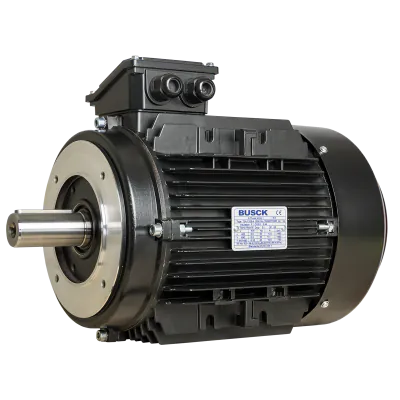

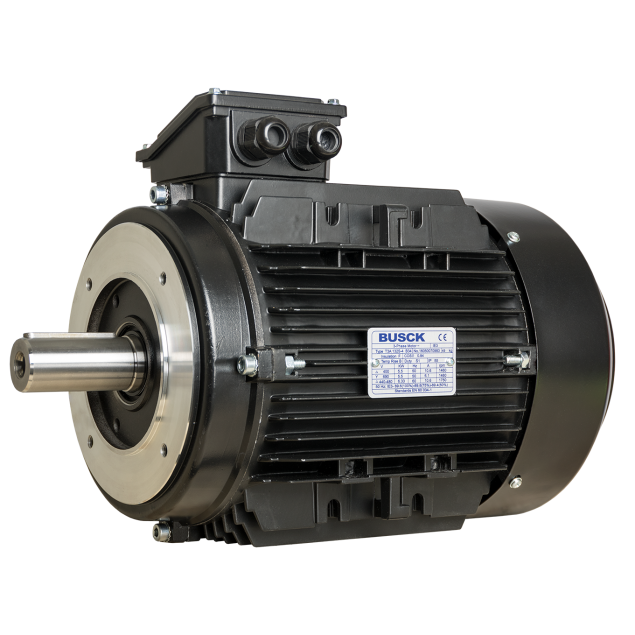

Busck AC motor T3A132SB-2, 7.5kW, 2930RPM, 400/690V, 50Hz, aluminium
T3A132SB-2The Busck AC motor is a three-phase synchronous motor designed to endure the most demanding conditions while providing reliable and efficient operation. With its durable aluminum construction and an impressive array of features, this motor is engineered to excel in various industrial applications.
Specifications
Product description
Downloads
€1,568.36
In stock
Expected shipment: 17-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A132SB-2
Speed (RPM)
2930
Rated output (kW)
7.5
Efficiency (% FL)
90.1
Voltage connection (Δ/Y)
400/690
Rated current at voltage
13.35/7.68
Nominal torque (Nm)
24.45
Start current ratio (IA/IN)
11.9
Mounting
B14
IEC norm
132
BCD
165
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: The motor boasts an IP55 rating, providing exceptional protection against dust and water ingress, enhancing its reliability and lifespan.
- Powerful performance: With a power output of 7.5kW and an operating speed of 2930RPM, this motor delivers a high level of performance for various industrial tasks.
- Voltage flexibility: The motor is designed to operate at both 400V and 690V, offering greater flexibility in power supply options.
- B14 flange mounting: Featuring a B14 flange mount, the motor can be easily installed and integrated into different machinery setups.
- High efficiency: The motor is rated IE3, meeting stringent energy efficiency standards and reducing energy consumption during operation.
Specifications:
- Robust construction: Built with sturdy aluminum materials.
- Wide temperature range: From -20°C to +40°C.
