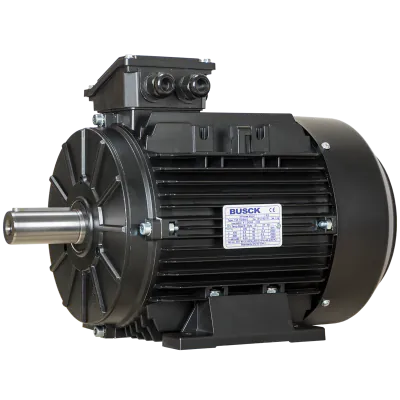

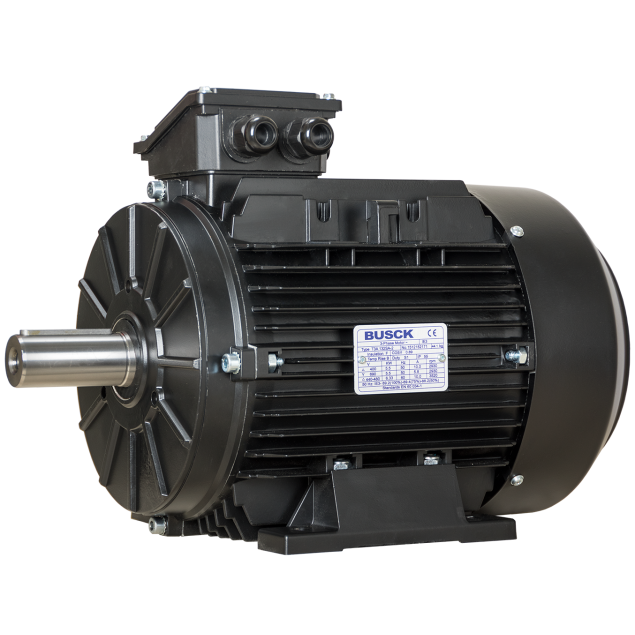

Busck AC motor T3A132SB-2B3230V, 7.5kW, 2930RPM, 230/400V, 50Hz, aluminium
T3A132SB-2B3230VThe Busck AC motor is a reliable and versatile high-performance three-phase synchronous motor designed to excel in demanding environments. Crafted to endure harsh conditions, this electric motor is the perfect choice for a wide range of industrial applications.
Specifications
Product description
Downloads
€1,522.52
In stock
Expected shipment: 17-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A132SB-2B3230V
Speed (RPM)
2930
Rated output (kW)
7.5
Efficiency (% FL)
90.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
23.3/13.4
Nominal torque (Nm)
24.4
Start current ratio (IA/IN)
11.9
Mounting
B3
IEC norm
132
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Robust construction: Built to withstand the harsh demands, ensuring long-lasting performance and reliability.
- IP55 rating: Offers protection against dust and water ingress, making it suitable for both indoor and outdoor use.
- 7.5kW power output: Delivers power for a wide range of industrial applications.
- 2930RPM speed: Provides efficient and precise operation for various machinery and equipment.
- 230/400V voltage: Designed to support multiple voltage configurations for versatile installation.
- B3 flange mount: Facilitates easy installation and integration into existing setups.
- IE3 efficiency: High energy efficiency to minimize power consumption and operational costs.
Specifications:
- Aluminum casing: The motor has a aluminum casing.
- Wide temperature range: -20°C to +40°C.
Downloads
