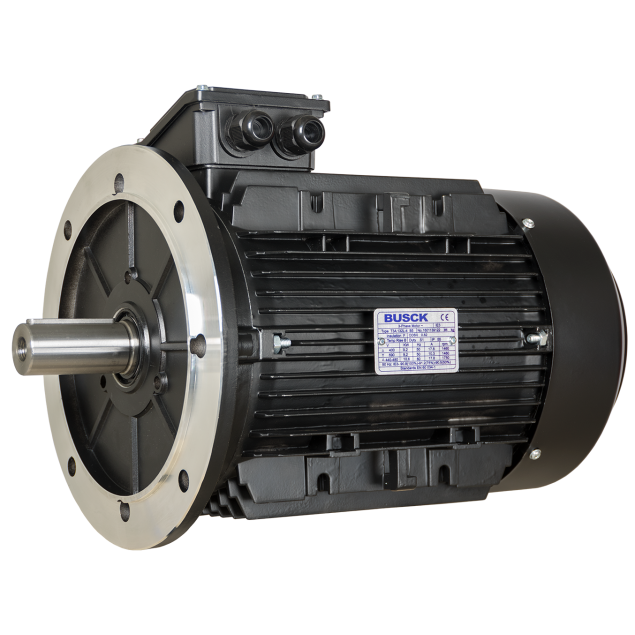

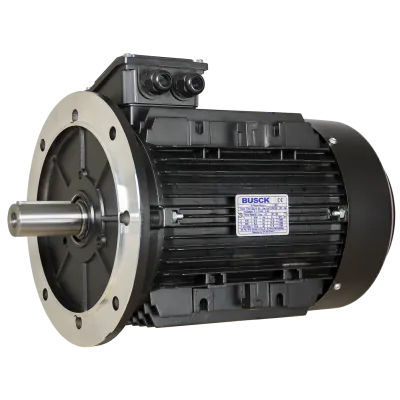

Busck AC motor T3A132M-4B5, 7.5kW, 1460RPM, 400/690V, 50Hz, aluminium
T3A132M-4B5The Busck AC motor is a robust and flexible high-performance three-phase synchronous motor designed to excel in demanding environments, delivering reliable power with its features. Built to withstand harsh conditions, this motor is engineered for long-lasting performance and efficiency.
Specifications
Product description
Downloads
€1,634.00
Made to order
Expected shipment: 10-04-2025
More Information
IP classification
IP 55
Model
T3A132M-4B5
Speed (RPM)
1460
Rated output (kW)
7.5
Efficiency (% FL)
90.4
Voltage connection (Δ/Y)
400/690
Rated current at voltage
14.3/8.22
Nominal torque (Nm)
49.06
Start current ratio (IA/IN)
9
Mounting
B5
IEC norm
132
BCD
265
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is well-protected against dust and water ingress, making it suitable for both indoor and outdoor applications.
- High power output: The motor offers an impressive 7.5kW power rating, providing ample torque for a wide range of applications.
- Efficient operation: Operating at 1460RPM, this motor optimizes energy consumption and minimizes operational costs.
- Versatile voltage compatibility: Designed to accommodate various power sources, the motor supports voltage inputs of 400V and 6900V.
- B5 flange: The B5 flange configuration ensures easy mounting and integration into different machinery setups.
- IE3-90.4 efficiency: The motor meets IE3-90.4 efficiency standards, ensuring reduced energy wastage and environmental impact.
Specifications:
- Robust build: The motor boasts a sturdy construction, ensuring durability and resilience in challenging industrial settings.
- Wide temperature range: Capable of performing in extreme temperatures, the motor operates flawlessly within a range of -20°C to +40°C.
