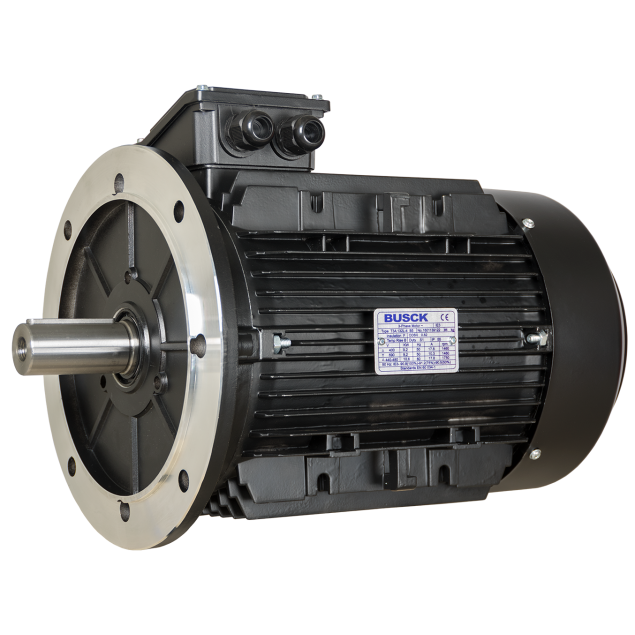

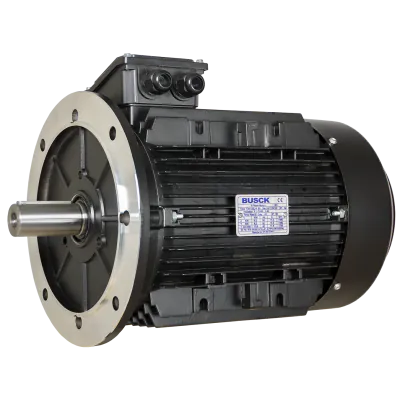

Busck AC motor T3A132M-4B52, 7.5kW, 1460RPM, 230/400V, 50Hz, aluminium
T3A132M-4B5230VThe Busck AC motor is a three-phase synchronous motor designed to deliver performance and durability even under harsh conditions. With its robust build and flexible design, this motor is engineered to withstand the demanding industrial applications, providing reliable power and efficiency.
Specifications
Product description
Downloads
€1,629.14
In stock
Expected shipment: 27-12-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A132M-4B5230V
Speed (RPM)
1460
Rated output (kW)
7.5
Efficiency (% FL)
90.4
Voltage connection (Δ/Y)
230/400
Rated current at voltage
24.9/14.3
Nominal torque (Nm)
49.1
Start current ratio (IA/IN)
8.9
Mounting
B5
IEC norm
132
BCD
265
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: Offers protection against dust and water, making it suitable for challenging environments.
- High power output: Boasting a 7.5kW motor, providing ample torque and performance.
- Optimal speed: The motor runs at a 1460RPM, ensuring smooth and efficient operations.
- Voltage flexibility: Designed to operate on both 230V and 400V power supplies, providing versatility in different setups.
- B5 flange: Easy and convenient mounting with B5 flange, simplifying installation processes.
- High energy efficiency: Boasts an IE3 efficiency rating, minimizing energy consumption and reducing operating costs.
Specifications:
- Robust build: Constructed with aluminum.
- Wide temperature range: -20°C to +40°C.
