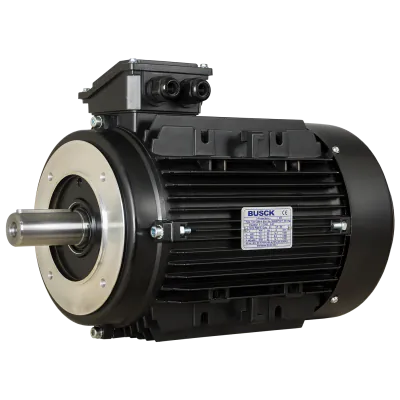

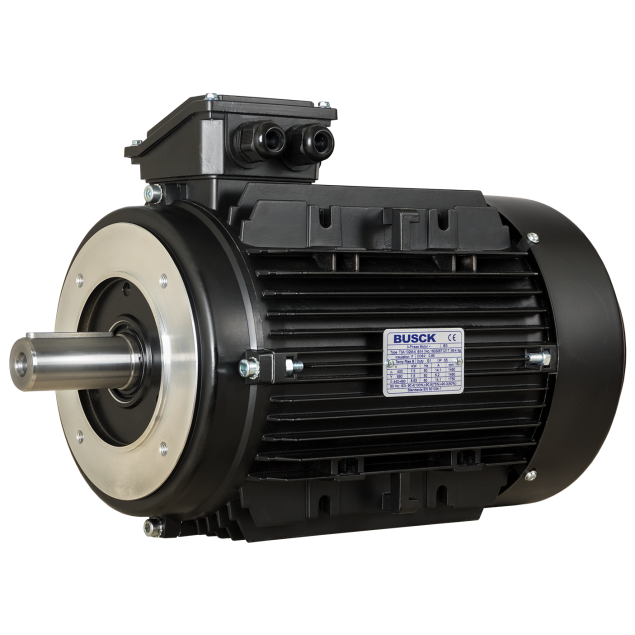

Busck AC motor T3A132MB-6, 5.5kW, 975RPM, 400/690V, 50Hz, aluminium
T3A132MB-6The Busck AC motor is a robust and flexible three-phase synchronous motor, specifically designed to excel under harsh demands. With its attributes and advanced engineering, this motor ensures reliability and efficiency in various industrial applications.
Specifications
Product description
Downloads
€1,765.01
In stock
Expected shipment: 06-02-2025
More Information
IP classification
IP 55
Model
T3A132MB-6
Speed (RPM)
975
Rated output (kW)
5.5
Efficiency (% FL)
88
Voltage connection (Δ/Y)
400/690
Rated current at voltage
12.7/7.3
Nominal torque (Nm)
53.87
Start current ratio (IA/IN)
7.4
Mounting
B14
IEC norm
132
BCD
165
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: Offering protection against dust and water ingress, the IP55 rating guarantees the motor's resilience in challenging environments.
- 5.5kW power output: With a powerful 5.5kW capacity, the motor delivers consistent and efficient performance for heavy-duty operations.
- 975RPM speed: The motor's optimal rotational speed ensures smooth and controlled operation, reducing wear and tear on machinery.
- IE3 efficiency class: Complying with IE3 standards, this motor boasts high energy efficiency, leading to cost savings and reduced environmental impact.
- 400/690V voltage: The motor supports dual voltage options, enabling compatibility with various electrical systems.
- B14 flange: The B14 flange design ensures easy and secure mounting, simplifying installation processes.
Specifications:
- Aluminum build: The motor has a aluminum construction.
- Temperature range: -20°C to +40°C.
