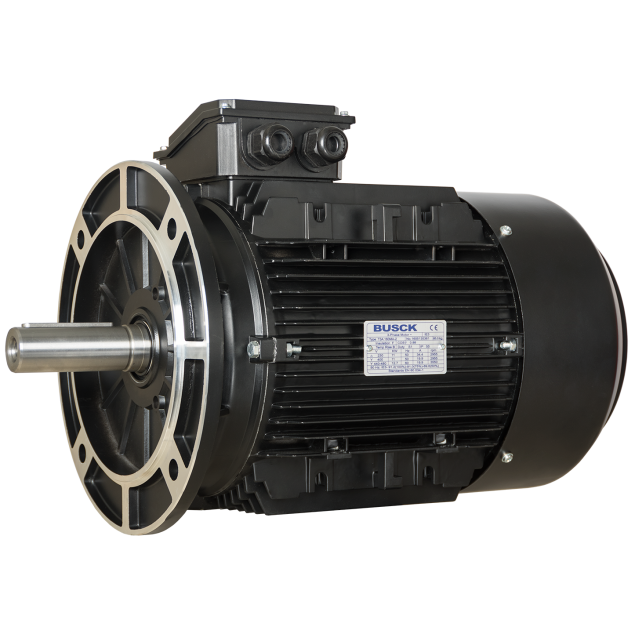

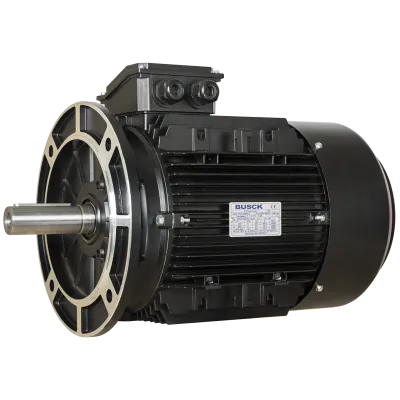

Description
Key features:
- IP55 Rating: With an IP55 rating, the motor is highly resistant to dust and water ingress,.
- High power output: The motor delivers 5.5kW of power.
- Optimized speed: Operating at 715RPM, the motor achieves an ideal balance between speed and performance for versatile use cases.
- High energy efficiency: Rated as IE3, this motor complies with stringent efficiency standards.
- Wide voltage range: Capable of handling voltages between 400V to 690V.
- B14 Flange: The B14 flange design offers easy and secure mounting.
Specifications:
- Temperature Range: -20°C to +40°C.
- Construction: Aluminum.
Specifications
IP classification
IP 55
Model
T3A160MB-8B5
Speed (RPM)
715
Rated output (kW)
5.5
Efficiency (% FL)
86.2
Voltage connection (Δ/Y)
400/690
Rated current at voltage
13.0/7.48
Nominal torque (Nm)
73.46
Start current ratio (IA/IN)
5.2
Mounting
B5
BCD
300
Poles
8
Efficiency standard
IE3
Shaft diameter (mm)
Ø42
Cooling
TEFC
Foreign trade
HS-Code
85015220
ERP net weight (Kg)
74.00
Country of origin
CHN
