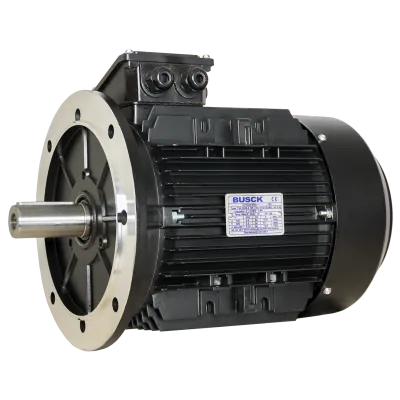

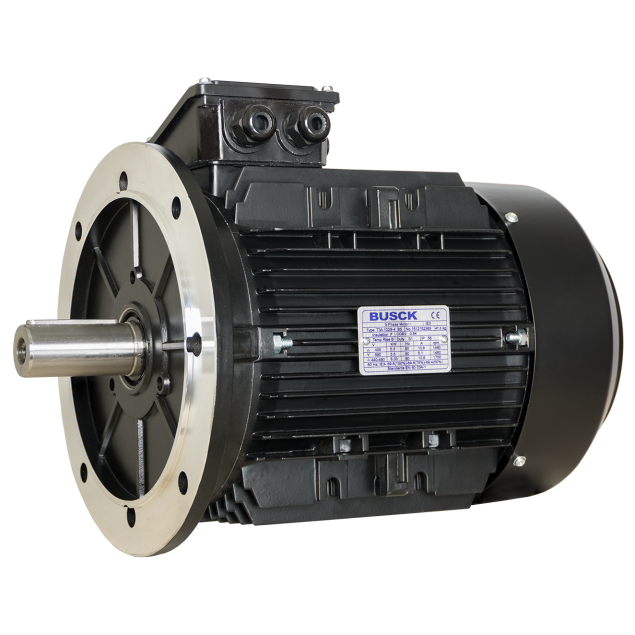

Busck AC motor T3A132SA-2B5, 5.5kW, 2930RPM, 400/690V, 50Hz, aluminium
T3A132SA-2B5The Busck AC motor is a robust and flexible high-performance three-phase synchronous motor designed to excel under demanding conditions. Crafted with precision engineering and high quality materials, this motor is engineered to withstand harsh environmental demands while delivering performance. With its features and reliable build, the Busck AC motor is the ideal choice for various industrial applications
Specifications
Product description
Downloads
€1,392.22
Made to order
Expected shipment: 06-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A132SA-2B5
Speed (RPM)
2930
Rated output (kW)
5.5
Efficiency (% FL)
89.2
Voltage connection (Δ/Y)
400/690
Rated current at voltage
2800
Nominal torque (Nm)
17.93
Start current ratio (IA/IN)
10
Mounting
B5
IEC norm
132
BCD
265
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- High power output: With a capacity of 5.5kW, this motor delivers performance for various industrial applications.
- Versatile installation: Equipped with a B5 flange, making it easy to integrate into different setups.
- Energy-efficient: Compliant with IE3 efficiency class, minimizing energy consumption and reducing operating costs.
- Weather-resistant: Boasts an IP55 rating, protecting the motor from dust and water ingress, suitable for outdoor usage.
Specifications:
- Efficient cooling: The aluminum construction ensures effective heat dissipation.
- Wide temperature range: From -20°C to +40°C.
