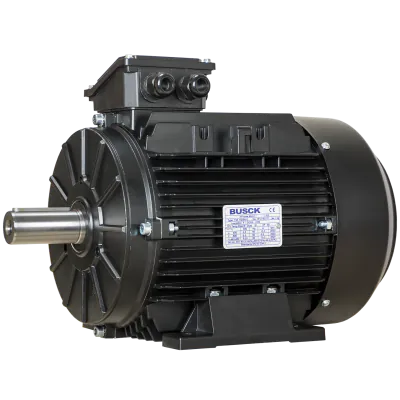

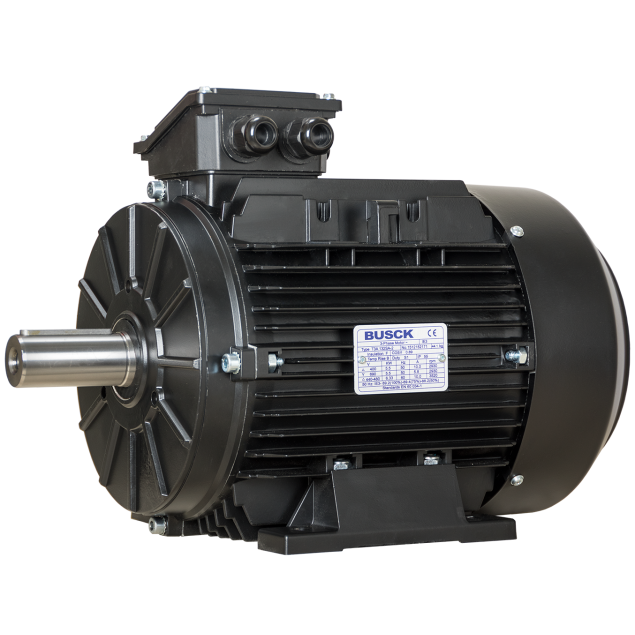

Busck AC motor T3A132SA-2B3, 5,5kW, 2930RPM, B3, 400/690, 50 Hz, Aluminium
T3A132SA-2B3The Busck AC Motor T3A132SA-2B3 is a robust electric motor engineered for industrial applications. It features a rated output of 5.5 kW and a nominal speed of 2800 RPM, with an actual operating speed of 2930 RPM. The motor follows the IE3 efficiency standard and complies with IEC frame size 132. Designed with a B3 foot mounting and built in IP55 enclosure class, it ensures reliable operation in demanding environments. The TEFC (Totally Enclosed Fan Cooled) construction and aluminium motor housing provide durability and effective heat dissipation. Additional features include 2 poles, shaft diameter Ø38 mm, and a voltage rating of 400/690 V.
Specifications
Product description
Downloads
€1,355.00
Made to order
Expected shipment:
Loading...
More Information
IP classification
IP 55
Model
T3A132SA-2B3
Speed (RPM)
2930
Rated output (kW)
5.5
Efficiency (% FL)
89.2
Voltage connection (Δ/Y)
400/690
Rated current at voltage
10/5.75
Nominal torque (Nm)
17.93
Start current ratio (IA/IN)
10
Mounting
B3
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
HS-Code
85015220.000000
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is well-protected against dust and water ingress, making it suitable for both indoor and outdoor use.
- High power output: Boasting a 5.5kW power rating.
- High speed: Operating at 2930RPM.
- Voltage compatibility: Designed to handle varying power requirements, the motor operates at 400/690V, ensuring adaptability across different setups.
- B3 flange mounting: The B3 flange allows for easy and secure mounting in a variety of configurations, enhancing installation flexibility.
- High efficiency: With an IE3 energy efficiency rating, the motor minimizes energy consumption, resulting in cost savings.
Specifications:
- Aluminum construction: The motor's sturdy aluminum build ensures durability and longevity.
- Wide temperature range: -20°C to +40°C.
