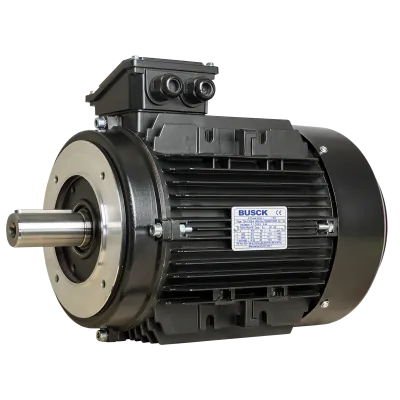

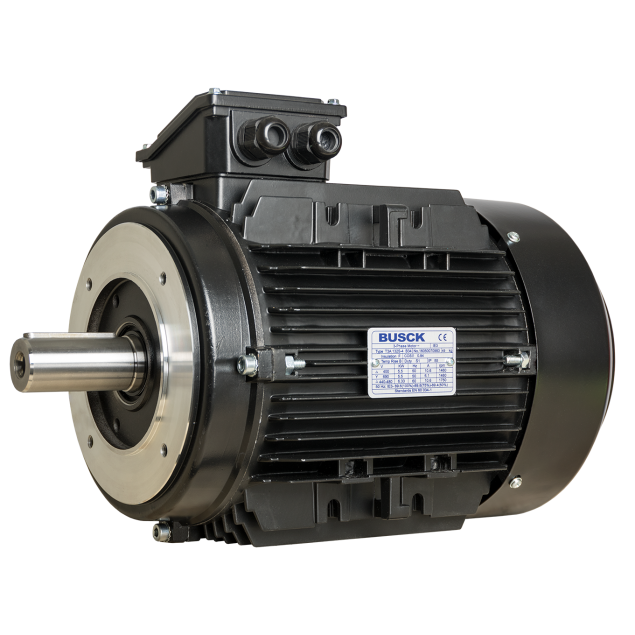

Busck AC motor T3A132SA-2, 5.5kW, 2930RPM, 400/690V, 50Hz, aluminium
T3A132SA-2The Busck AC Motor is a reliable and adaptable three-phase synchronous motor, designed to excel in the face of challenging conditions. With its robust construction and high-performance capabilities, this motor is the ideal choice for various industrial applications.
Specifications
Product description
Downloads
€1,396.00
Made to order
Expected shipment: 01-04-2025
More Information
IP classification
IP 55
Model
T3A132SA-2
Speed (RPM)
2930
Rated output (kW)
5.5
Efficiency (% FL)
89.2
Voltage connection (Δ/Y)
400/690
Rated current at voltage
10/5.75
Nominal torque (Nm)
17.93
Start current ratio (IA/IN)
10
Mounting
B14
IEC norm
132
BCD
165
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress, making it suitable for both indoor and outdoor use.
- High power: This motor boasts a power output of 5.5kW, delivering performance for heavy-duty applications.
- High speed: Operating at 2930RPM, the Busck AC Motor ensures efficient operation and optimal output for various industrial processes.
- Voltage flexibility: With a voltage rating of 400/690V, this motor can be adapted to different power systems, providing versatility in its applications.
- B14 flange: The B14 flange design facilitates easy mounting, enhancing the motor's usability and compatibility with various machinery.
- Energy efficiency: The Busck AC Motor is rated IE3, meeting energy efficiency standards and reducing operational costs.
Specifications:
- Robust build: The Busck AC Motor is built with durable materials, including an aluminum frame.
- Wide temperature range: -20°C to +40°C.
