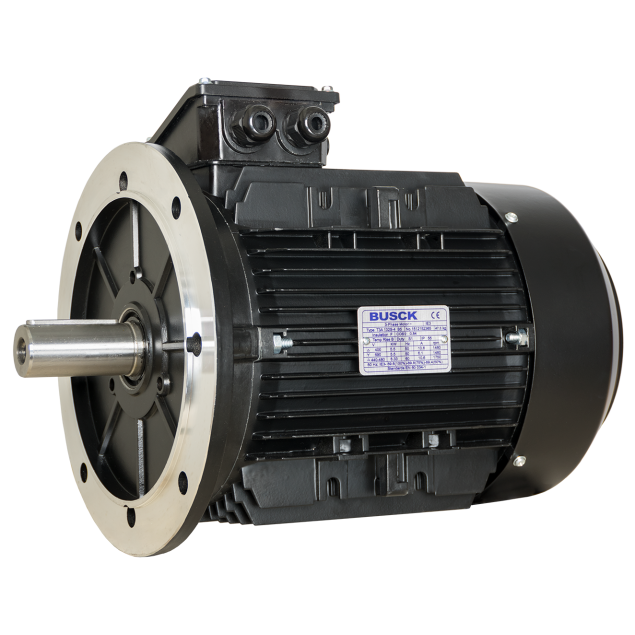

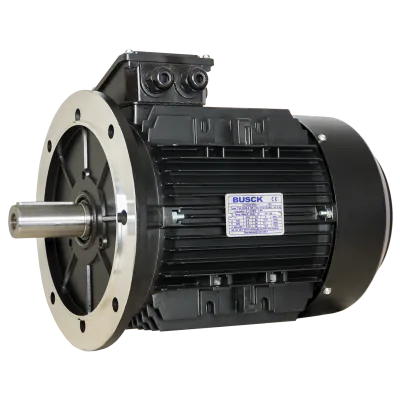

Busck AC motor T3A132SA-2B5230V, 5.5kW, 2930RPM, 230/400V, 50Hz, aluminium
T3A132SA-2B5230VThe Busck AC motor is a robust and flexible high-performance three-phase synchronous motor, engineered to withstand the demanding environments. Crafted with precision, this motor ensures reliable and efficient operation, making it an ideal choice for various industrial applications.
Specifications
Product description
Downloads
€1,396.00
In stock
Expected shipment: 23-02-2025
More Information
IP classification
IP 55
Model
T3A132SA-2B5230V
Speed (RPM)
2930
Rated output (kW)
5.5
Efficiency (% FL)
89.2
Voltage connection (Δ/Y)
230/400
Rated current at voltage
17.4/10
Nominal torque (Nm)
17.9
Start current ratio (IA/IN)
10
Mounting
B5
IEC norm
132
BCD
265
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, this motor is well-protected against dust and water ingress.
- High power output: Boasting a power rating of 5.5kW, the Busck AC motor delivers a robust performance, even in heavy-duty applications.
- High speed: The motor operates at 2930RPM, providing efficient and precise rotational power for your industrial needs.
- Dual voltage support: The motor is designed to handle both 230V and 400V power supply, offering versatility and compatibility with various setups.
- B5 flange mounting: Featuring a B5 flange, the motor can be easily mounted, ensuring a secure and stable installation.
- High efficiency: With an IE3 efficiency rating, the motor optimizes energy usage, reducing operating costs and environmental impact.
Specifications:
- Aluminum build: The motor's is made of a aluminum construction.
- Wide temperature range: -20°C to +40°C.
