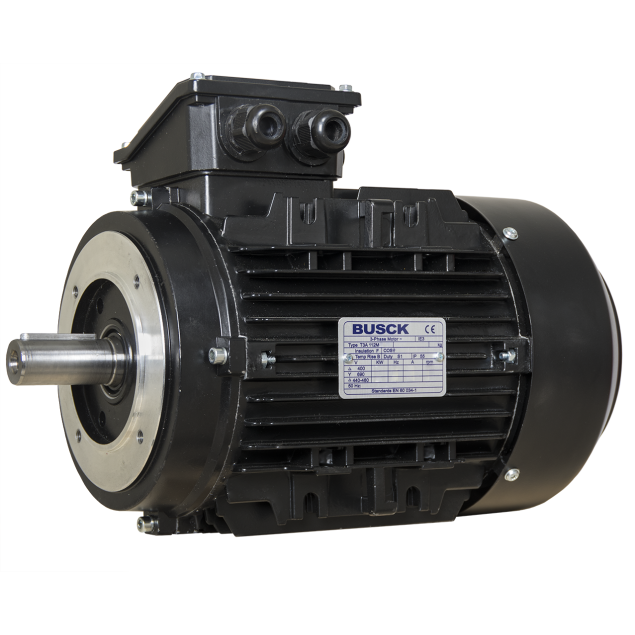

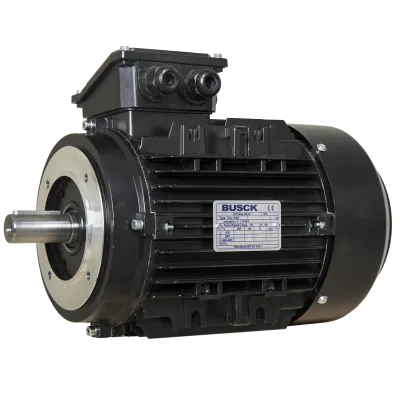

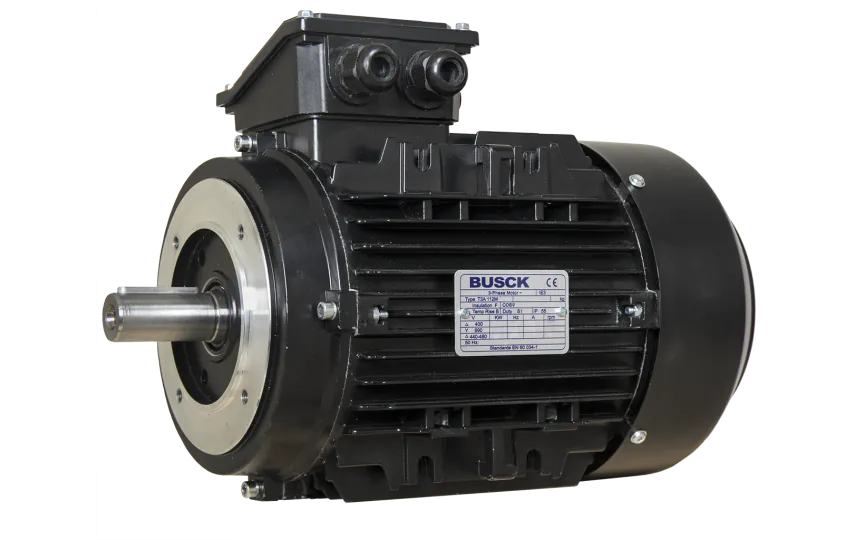

Description
Key features:
- IP55 rating: Provides protection against dust and water, making it suitable for both indoor and outdoor installations.
- High power output: Boasting a 5.5kW power rating, this motor delivers superior performance to handle heavy-duty tasks efficiently.
- High speed: Running at 2930RPM, the motor ensures smooth and efficient operation in demanding applications.
- Wide voltage range: Compatible with both 400V and 690V power systems, offering flexibility in installation setups.
- B14 flange: The B14 flange design enables easy mounting and integration into various machinery setups.
- IE3 efficiency: The motor complies with IE3 efficiency standards, reducing energy consumption and minimizing environmental impact.
Specifications:
- Robust construction: Made with aluminum materials.
- Extended temperature range: From -20°C to +40°C.
Specifications
IP classification
IP 55
Model
T3A112MB-2-230
Speed (RPM)
2930
Rated output (kW)
5.5
Efficiency (% FL)
0.89
Voltage connection (Δ/Y)
230/400
Rated current at voltage
17.0/9.78
Nominal torque (Nm)
17.99
Start current ratio (IA/IN)
11.9
Mounting
B14
BCD
130
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Country of origin
CHN
HS-Code
85015220.000000
ERP net weight (Kg)
39.000000
Foreign trade
HS-Code
85015220
ERP net weight (Kg)
39.00
Country of origin
CHN
