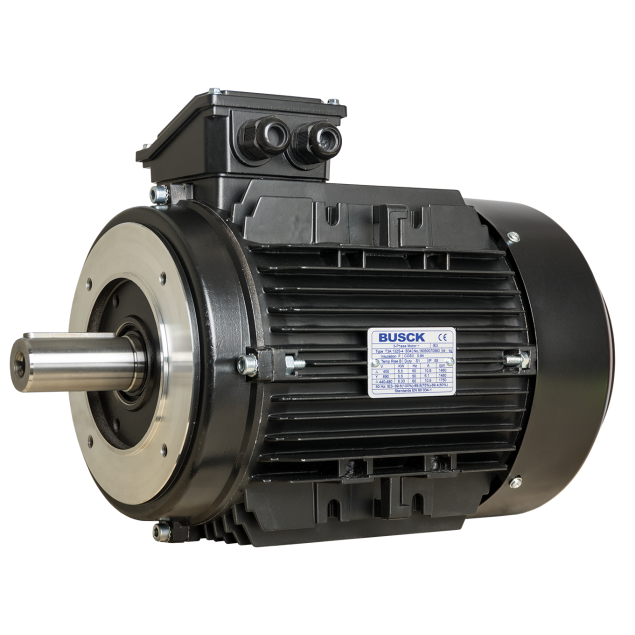

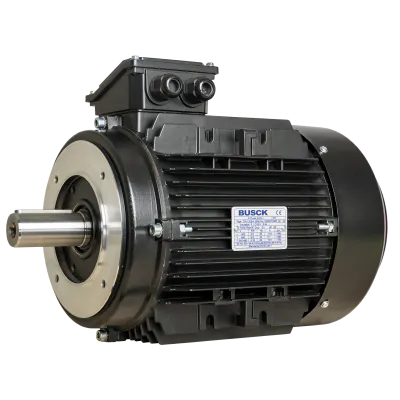

Busck AC motor T3A132S-4, 5.5kW, 1460RPM, 400/690V, 50Hz, aluminium
T3A132S-4The Busck AC motor is a three-phase synchronous motor, specifically designed to excel in demanding environments. With its robust construction and high-performance capabilities, this electric motor is engineered to withstand the harsh demands.
Specifications
Product description
Downloads
€1,437.27
In stock
Expected shipment: 06-12-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A132S-4
Speed (RPM)
1460
Rated output (kW)
5.5
Efficiency (% FL)
89.6
Voltage connection (Δ/Y)
400/690
Rated current at voltage
10.5/6.04
Nominal torque (Nm)
35.98
Start current ratio (IA/IN)
9
Mounting
B14
IEC norm
132
BCD
165
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: Boasting an IP55 rating, this motor is well-protected against dust and water ingress, making it suitable for various industrial applications.
- High power output: With a power rating of 5.5kW, the motor delivers exceptional performance for a wide range of tasks.
- Efficient speed: Operating at 1460RPM, the motor ensures efficient operation and optimized power utilization.
- Wide voltage range: Supporting voltages of 400/690V, this motor is highly versatile and adaptable to different power supply setups.
- B14 flange mounting: The B14 flange allows for easy and secure mounting, enhancing installation efficiency.
- IE3 efficiency: Compliant with IE3 efficiency standards, this motor minimizes energy consumption while maximizing output.
Specifications:
- Aluminum build: The motor features a durable aluminum construction.
- Wide temperature range: -20°C to +40°C.
