Busck AC motor T3A132S-4B5230V, 5,5kW, 1460RPM, B5, 230/400, 50 Hz, Aluminium

T3A132S-4B5230V

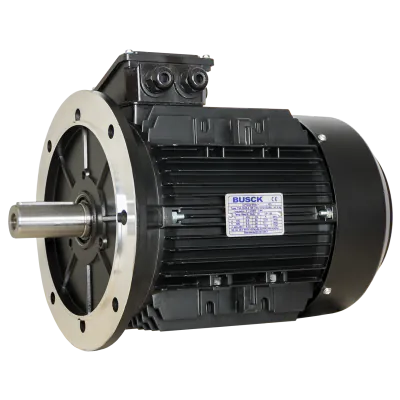

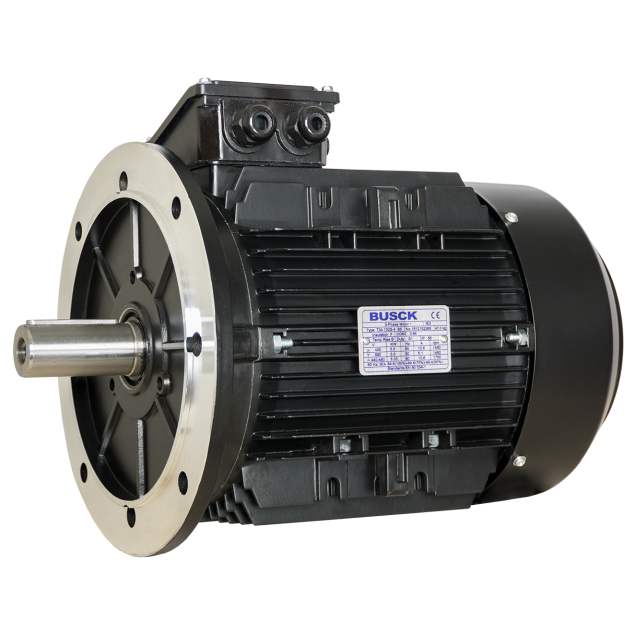

The Busck AC Motor T3A132S-4B5230V is a robust electric motor designed for industrial applications. It features a rated output of 5.5 kW and a rated speed of 1400 RPM with a maximum speed of 1460 RPM. Built in accordance with the IEC 132 frame standard, it has a B5 mounting type and a shaft diameter of Ø38 mm. The motor offers IE3 energy efficiency and is cooled using a Totally Enclosed Fan Cooled (TEFC) system. The IP55 protection class ensures durability in demanding environments. Constructed from aluminium with 4 poles and a bolt circle diameter (BCD) of 265 mm. Operates on a 230/400 V, 50 Hz voltage supply.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T3A132S-4B5230V

Speed (RPM)

1460

Rated output (kW)

5.5

Efficiency (% FL)

89.65

Voltage connection (Δ/Y)

230/400

Rated current at voltage

18.3/10.5

Nominal torque (Nm)

35.9

Start current ratio (IA/IN)

Mounting

BCD

265

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø38

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

Robust build: Designed for durability and reliability, the Busck AC motor is built to withstand demanding environments.
IP55 rating: With an IP55 rating, the motor is well-protected against dust and water, making it suitable for a wide range of applications.
High power output: Boasting a power rating of 5.5kW, this motor delivers exceptional performance and efficiency.
Efficient operation: The IE3 efficiency rating ensures energy-efficient operation, minimizing power consumption and reducing operational costs.
Versatile speed: The motor operates at a steady 1460RPM, making it ideal for various industrial processes.
Wide voltage range: Capable of running on 230V or 400V, the motor offers flexibility in power supply options.
B5 flange: The B5 flange design enables easy and convenient installation in different setups.

Specifications:
