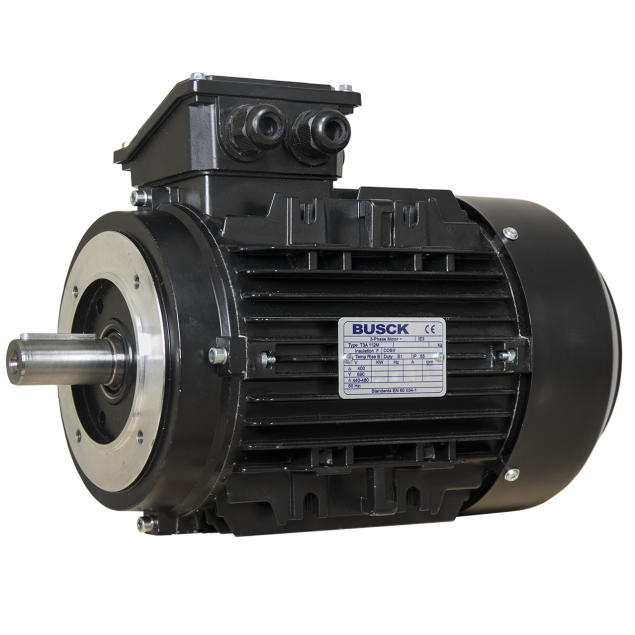

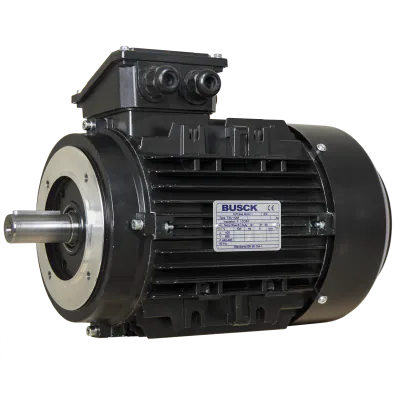

Busck AC motor T3A112MB-4, 5.5kW, 1450RPM, 400/690V, 50Hz, aluminium
T3A112MB-4The Busck AC motor is a robust and flexible high-performance three-phase synchronous motor designed to excel under the harsh demands. Engineered with precision and durability in mind, this motor is the ideal choice for a wide range of industrial applications.
Specifications
Product description
Downloads
€1,240.19
In stock
Expected shipment: 03-11-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A112MB-4
Speed (RPM)
1450
Rated output (kW)
5.5
Efficiency (% FL)
89.6
Voltage connection (Δ/Y)
400/690
Rated current at voltage
11.1/6.38
Nominal torque (Nm)
36.22
Start current ratio (IA/IN)
9.1
Mounting
B14
IEC norm
112
BCD
130
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, making it suitable for various indoor and outdoor applications.
- Power output: Delivering a substantial 5.5kW of power, the Busck motor empowers your machinery to perform efficiently and reliably.
- Optimal speed: The motor operates at 1450RPM.
- Wide voltage range: With a voltage range of 400/690V, the motor adapts seamlessly to different power supply setups.
- B14 flange mounting: The B14 flange allows for easy installation, providing a secure and precise motor-to-machine connection.
- High efficiency: The motor complies with IE3 efficiency standards, ensuring energy savings and reducing operating costs.
Specifications:
- Rugged construction: The Busck AC motor boasts a sturdy aluminum housing.
- Temperature resilient: -20°C to +40°C.
