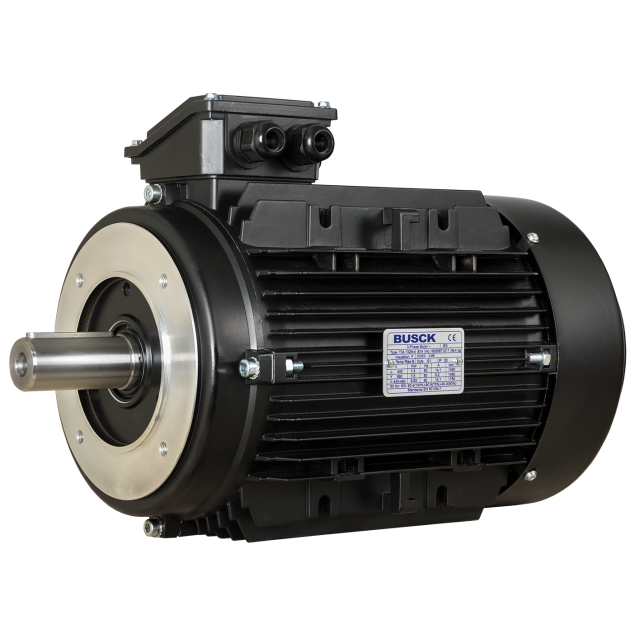

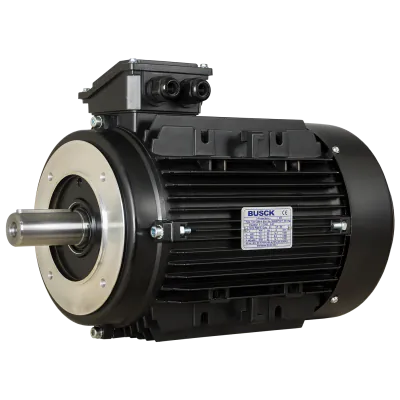

Busck AC motor T3A132MA-6, 4kW, 970RPM, 400/690V, 50Hz, aluminium
T3A132MA-6The Busck AC motor is a three-phase synchronous motor, designed to excel even under the harsh conditions. Its construction and advanced features make it a reliable choice for various industrial applications. With its attributes and high-quality build, the Busck AC motor offers performance and longevity.
Specifications
Product description
Downloads
€1,555.53
In stock
Expected shipment: 03-12-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A132MA-6
Speed (RPM)
970
Rated output (kW)
4
Efficiency (% FL)
86.8
Voltage connection (Δ/Y)
400/690
Rated current at voltage
9/5.18
Nominal torque (Nm)
39.38
Start current ratio (IA/IN)
6.8
Mounting
B14
IEC norm
132
BCD
165
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: The motor boasts an IP55 rating.
- High power output: The Busck AC motor delivers an power of 4kW.
- Efficient 970RPM: With a rotational speed of 970RPM, the motor provides efficient and consistent performance.
- IE3 efficiency: The motor complies with IE3 efficiency standards, ensuring energy-saving benefits and reduced operational costs.
- Wide voltage range: The motor operates at a voltage range of 400/690V.
- B14 flange: The B14 flange design ensures seamless mounting and easy integration into existing systems.
Specifications:
- Durable aluminum construction: The motor is made from aluminum.
- Wide temperature range: -20°C to +40°C.
