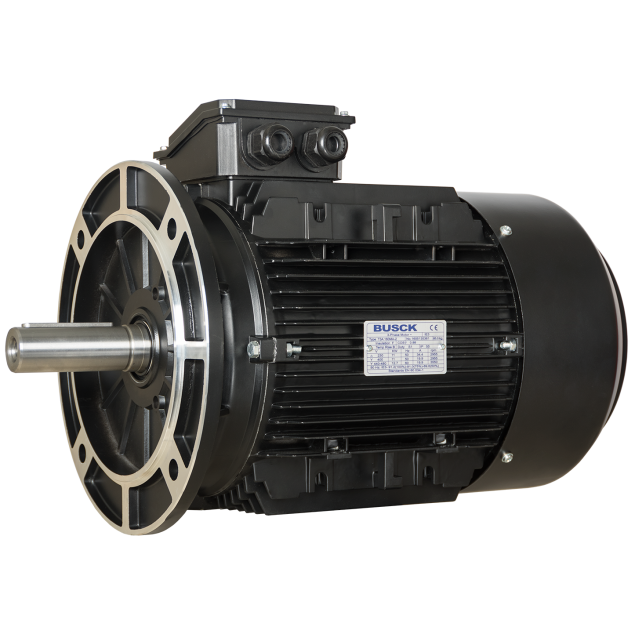

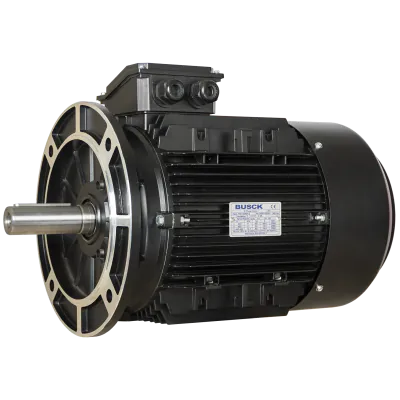

Busck AC motor T3A160MA-8B5, 4kW, 715RPM, B5, 400/690, 50 Hz, Aluminium
T3A160MA-8B5The Busck AC motor is a three-phase synchronous motor, designed to endure demanding environments. Crafted with hifh quality materials, this motor guarantees performance and longevity.
Specifications
Product description
Downloads
€3,041.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP 55
Model
T3A160MA-8B5
Speed (RPM)
715
Rated output (kW)
4
Efficiency (% FL)
84.8
Voltage connection (Δ/Y)
400/690
Rated current at voltage
9.73/5.59
Nominal torque (Nm)
53.43
Start current ratio (IA/IN)
5
Mounting
B5
BCD
300
Poles
8
Efficiency standard
IE3
Shaft diameter (mm)
Ø42
Cooling
TEFC
HS-Code
85015220.000000
Description
Key Features:
- IP55 rating: Provides protection against dust and water, making it suitable for various environments.
- High power output: With a power rating of 4kW, it delivers outstanding performance in any application.
- High efficiency: Rated IE3, ensuring energy efficiency and reduced operating costs.
- Flexible voltage options: Suitable for 400V and 690V power supply systems, ensuring compatibility in different setups.
- B5 flange: Allows for easy mounting and integration into various mechanical systems.
Specifications:
- Wide temperature range: -20°C to +40°C.
- Aluminum construction: Lightweight yet sturdy aluminum housing.
