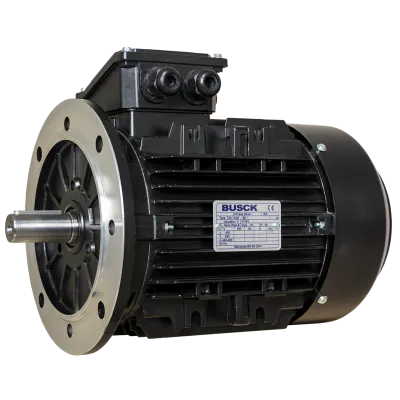

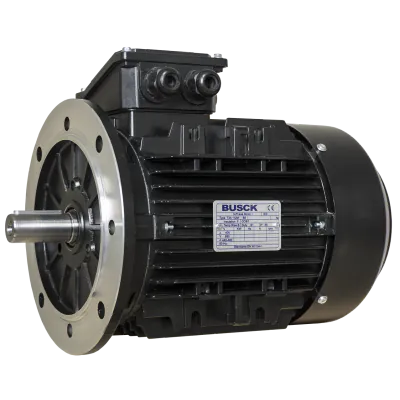

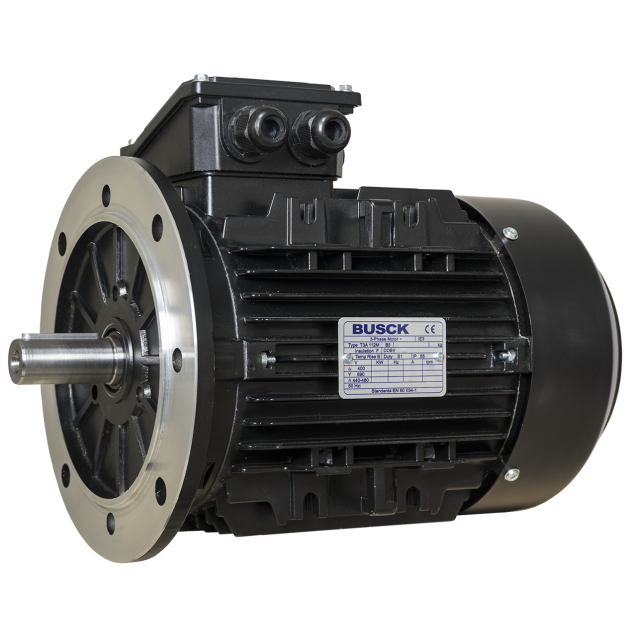

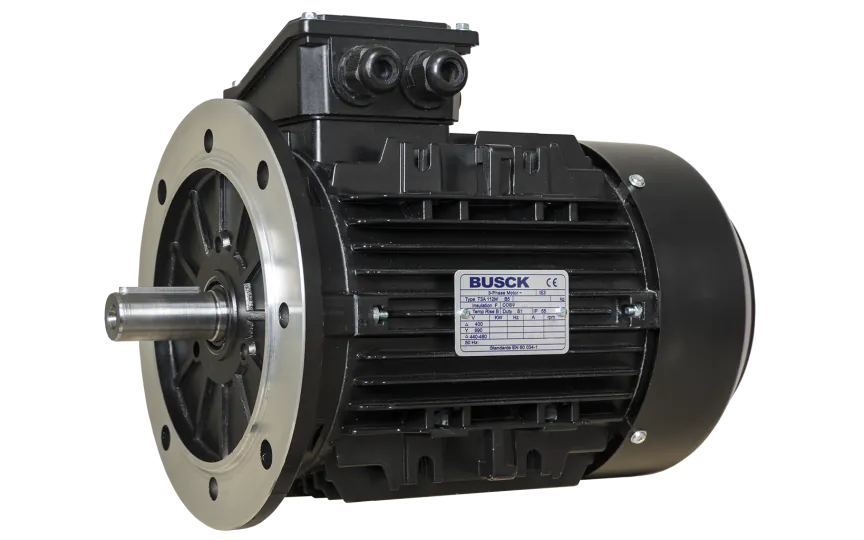

Busck AC motor T3A112M-2B5, 4kW, 2920RPM, 400/690V, 50Hz, aluminium
T3A112M-2B5The Busck AC motor is a robust and flexible high-performance three-phase synchronous motor designed to endure harsh operating conditions. Crafted with precision, this motor guarantees performance and reliability for various industrial applications. With its attributes and specifications, the Busck AC motor stands as a dependable choice for your motor needs.
Specifications
Product description
Downloads
€921.98
Made to order
Expected shipment: 06-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A112M-2B5
Speed (RPM)
2920
Rated output (kW)
4
Efficiency (% FL)
88.1
Voltage connection (Δ/Y)
400/690
Rated current at voltage
7.2/4.14
Nominal torque (Nm)
13.08
Start current ratio (IA/IN)
10.5
Mounting
B5
IEC norm
112
BCD
215
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is fully protected against dust and water ingress.
- High power output: The motor boasts a powerful 4kW output, delivering the strength needed to drive heavy loads efficiently.
- High speed: Operating at 2920RPM, the motor provides rapid and consistent performance for a wide range of applications.
- Versatile voltage: Designed for versatility, the motor can operate with voltage inputs of 400/690V, accommodating various power supply configurations.
- Flange type: B5 flange, ensuring compatibility with standard mounting systems.
- Efficiency rating: IE3, indicating high energy efficiency, reducing power consumption and operational costs.
Specifications:
- Aluminum build: The motor's aluminum construction ensures a lightweight yet sturdy design.
- Temperature range: 20°C to +40°C.
