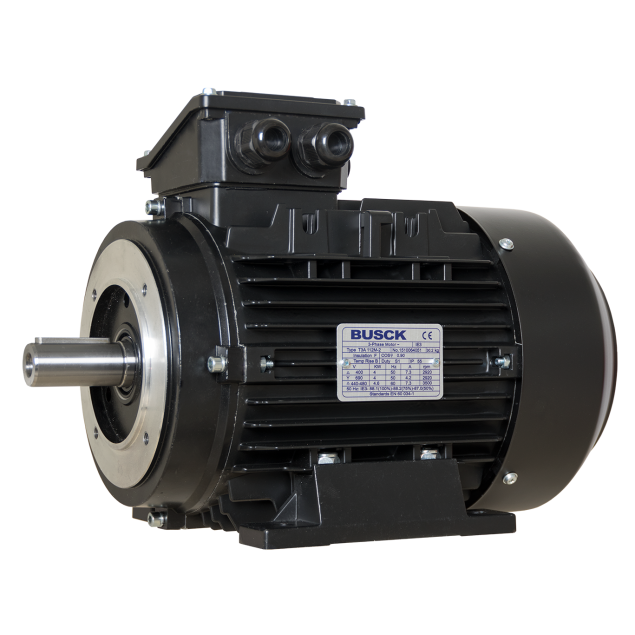

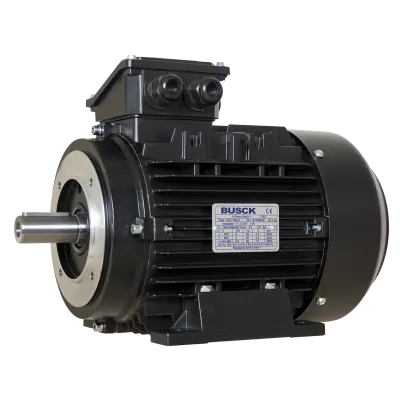

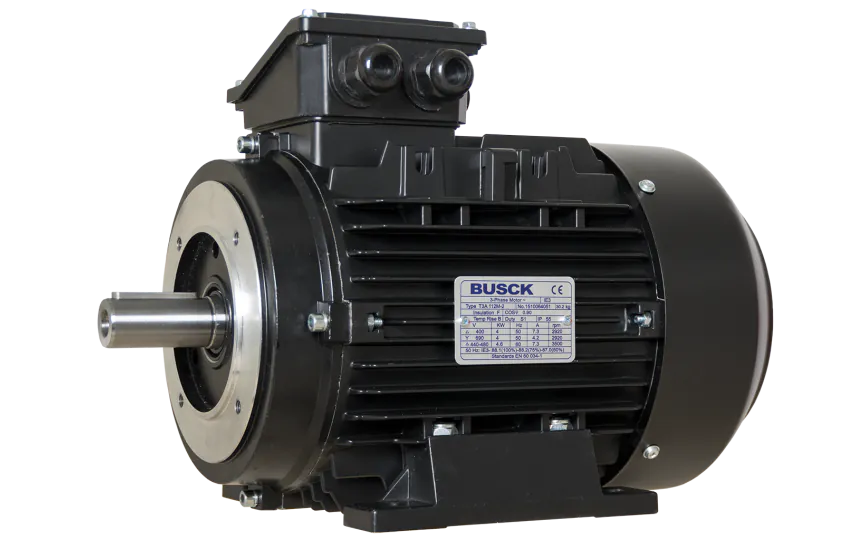

Busck AC motor T3A112M-2B34, 4kW, 2920RPM, 400/690V, 50Hz, aluminium
T3A112M-2B34The Busck AC motor is a robust and flexible three-phase synchronous motor designed to meet the harsh demands of various industrial applications. Crafted with top-quality materials and technology, this electric motor guarantees performance and durability.
Specifications
Product description
Downloads
€939.81
In stock
Expected shipment: 04-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A112M-2B34
Speed (RPM)
2920
Rated output (kW)
4
Efficiency (% FL)
88.1
Voltage connection (Δ/Y)
400/690
Rated current at voltage
7.2/4.14
Nominal torque (Nm)
13.08
Start current ratio (IA/IN)
10.5
Mounting
B34
IEC norm
112
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Robust build: Built to withstand harsh environmental conditions and heavy-duty usage.
- IP55 rating: Offers protection against dust and water, making it suitable for both indoor and outdoor applications.
- 4kW power output: Delivers substantial power for demanding industrial tasks, ensuring optimal performance.
- 2920RPM: High rotational speed, enabling swift and efficient operations.
- 400/690V voltage range: Allows for versatile applications across different voltage setups.
- B34 flange: The motor is equipped with a B34 flange, facilitating easy installation and compatibility with various equipment.
- IE3 efficiency: Complies with high energy efficiency standards, reducing power consumption and operating costs.
Specifications:
- Aluminum construction: The motor has a aluminum housing.
- Temperature range: -20°C to +40°C.
