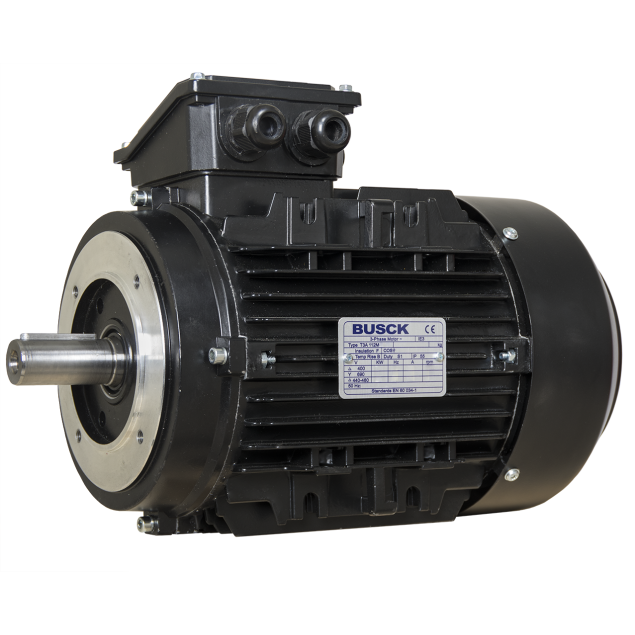

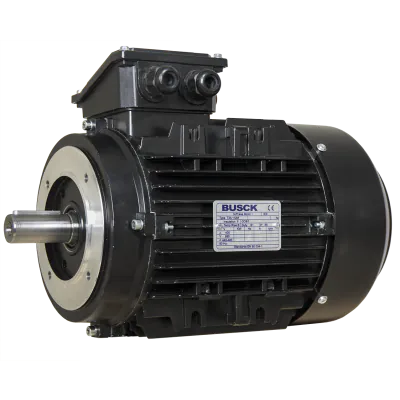

Busck AC motor T3A112M-2, 4kW, 2920RPM, B14, 400/690, 50 Hz, Aluminium

T3A112M-2

The Busck AC Motor T3A112M-2 is a 4kW electric motor engineered for reliable operation in industrial applications. It features a rated output of 4 kW and delivers a speed of 2920 RPM with a rated speed of 2800 RPM. Built with a B14 mounting configuration and a shaft diameter of Ø28 mm, the motor follows the IEC 112 norm and complies with the IE3 efficiency standard. The cooling type is TEFC (Totally Enclosed Fan Cooled), and the motor housing is made of aluminium. It is constructed with 2 poles and operates at a voltage of 400/690 V. The motor has a BCD of 130 and an IP55 protection class, making it suitable for use in demanding environments.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A112M-2

Speed (RPM)

2920

Rated output (kW)

Efficiency (% FL)

88.1

Voltage connection (Δ/Y)

400/690

Rated current at voltage

7.2/4.14

Nominal torque (Nm)

13.08

Start current ratio (IA/IN)

10.5

Mounting

B14

BCD

130

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress.
High power output: Boasting a power rating of 4kW, this motor delivers consistent and powerful performance for your industrial needs.
High speed: Operating at 2920RPM, the motor ensures efficient and swift operation, enhancing productivity.
Wide voltage range: The motor supports a voltage range of 400/690V, offering flexibility in different power supply environments.
B14 flange mounting: The B14 flange allows for easy and secure mounting, simplifying installation processes.
High energy efficiency: Achieving an IE3 efficiency class, this motor helps conserve energy and reduce operational costs.
