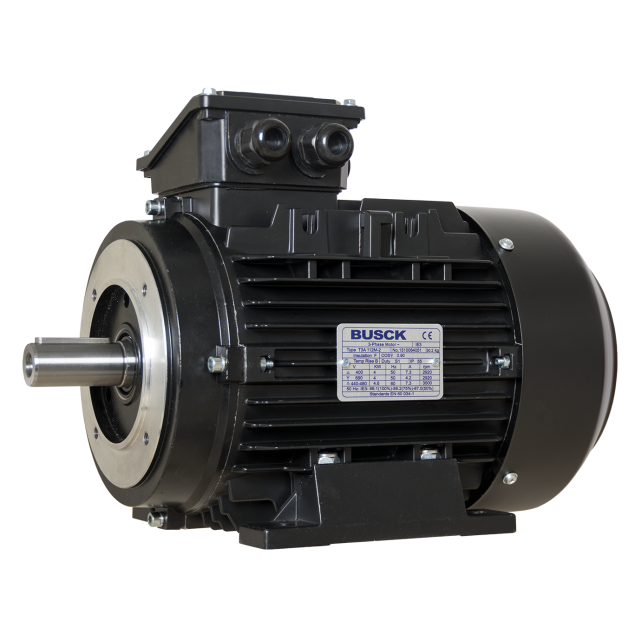

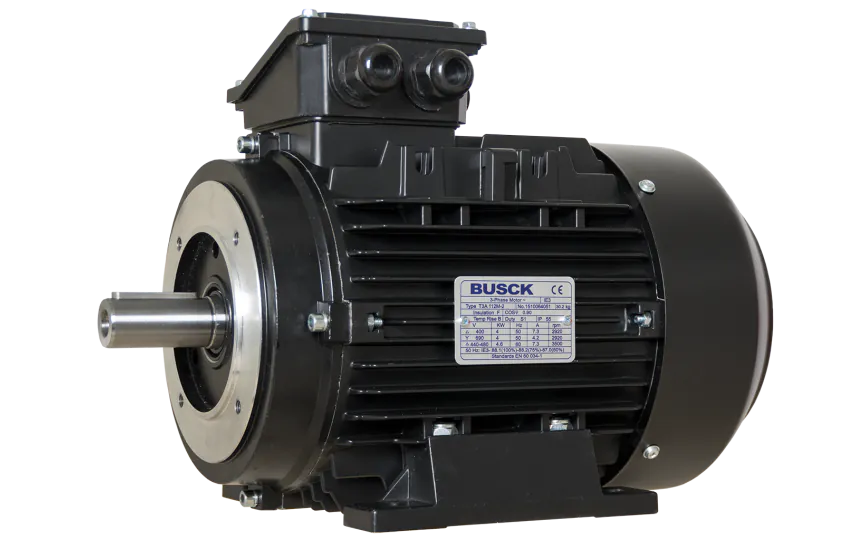

Busck AC motor T3A112M-4B35, 4kW, 1450RPM, 400/690V, 50Hz, aluminium
T3A112M-4B35The Busck AC motor is a three-phase synchronous motor designed to excel in demanding industrial environments. With its sturdy construction and high-performance capabilities, this motor is engineered to withstand harsh conditions while delivering reliable and efficient operation.
Specifications
Product description
Downloads
€1,060.00
In stock
Expected shipment: 23-02-2025
More Information
IP classification
IP 55
Model
T3A112M-4B35
Speed (RPM)
1450
Rated output (kW)
4
Efficiency (% FL)
88.6
Voltage connection (Δ/Y)
400/690
Rated current at voltage
7.9/4.54
Nominal torque (Nm)
26.34
Start current ratio (IA/IN)
8.6
Mounting
B35
IEC norm
112
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: Provides protection against dust and water, making it suitable for both indoor and outdoor installations.
- High power output: With a power rating of 4kW, this motor delivers impressive performance for various industrial tasks.
- Smooth operation: The motor operates at 1450RPM, ensuring smooth and consistent power delivery throughout its usage.
- Versatile voltage: Supports both 400V and 690V power supply, providing flexibility in different electrical setups.
- B35 flange: The motor's B35 flange design allows for easy mounting and integration into different equipment configurations.
- Energy-efficient: Compliant with IE3 efficiency class, this motor helps reduce energy consumption and operating costs.
Specifications:
- Robust build: Built to last with a aluminum construction.
- Wide temperature range: -20°C to +40°C.
