Busck AC motor T3A132S-6, 3kW, 965RPM, B14, 230/400, 50 Hz, Aluminium

T3A132S-6

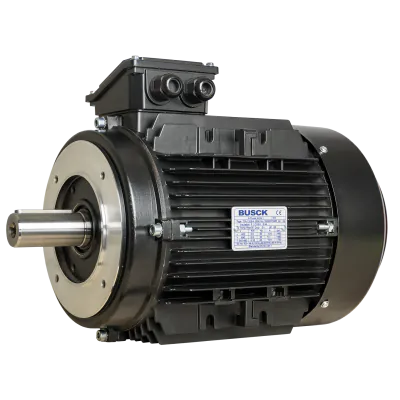

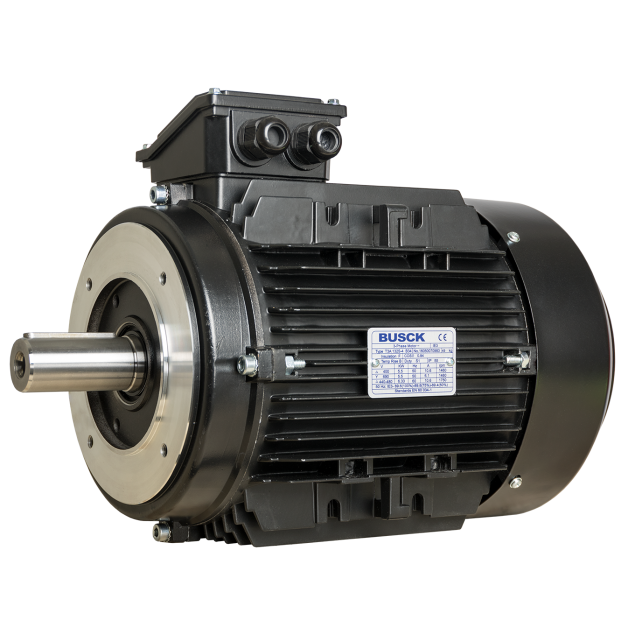

The Busck AC Motor T3A132S-6 is a 3-phase electric motor designed for reliable industrial use. It features a rated output of 3 kW and a rated speed of 900 RPM with a measured speed of 965 RPM. Built with a B14 mounting type and shaft diameter Ø38 mm, it follows the IEC 132 norm and meets the IE3 efficiency standard. The motor has a TEFC cooling system, constructed in aluminium housing that ensures durability and weight efficiency. It has 6 poles, supports a voltage connection of 230/400 V, operates at 50 Hz, and is IP55 classified for protection against dust and water. The bolt circle diameter (BCD) is 165 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A132S-6

Speed (RPM)

965

Rated output (kW)

Efficiency (% FL)

85.6

Voltage connection (Δ/Y)

230/400

Rated current at voltage

11.83/6.8

Nominal torque (Nm)

29.69

Start current ratio (IA/IN)

Mounting

B14

BCD

165

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø38

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: The motor is protected against dust and water ingress, making it suitable for use in challenging environments.
High power output: With a power rating of 3kW, this motor provides substantial torque for heavy-duty tasks.
Efficient speed: The motor operates at 965RPM, striking a balance between speed and precision in industrial processes.
IE3 efficiency: Compliant with IE3 efficiency standards, ensuring energy-saving benefits and reduced operational costs.
Voltage compatibility: This motor supports both 230V and 400V power supply.
B14 flange: The motor features a B14 flange.

Specifications:
