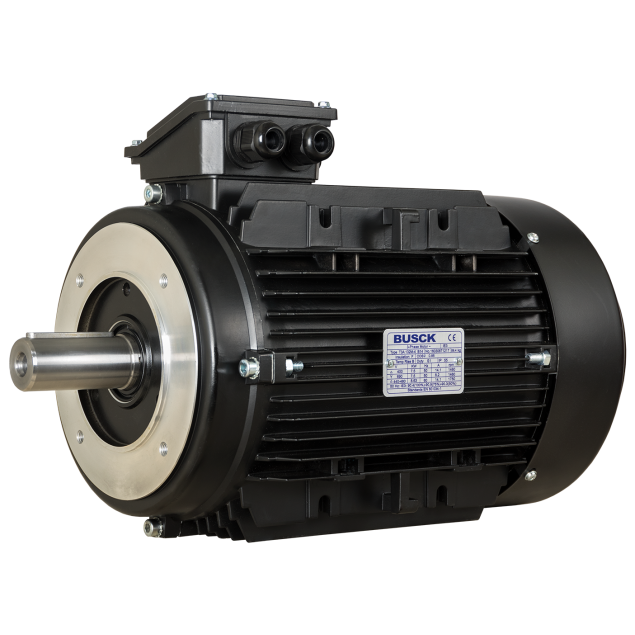

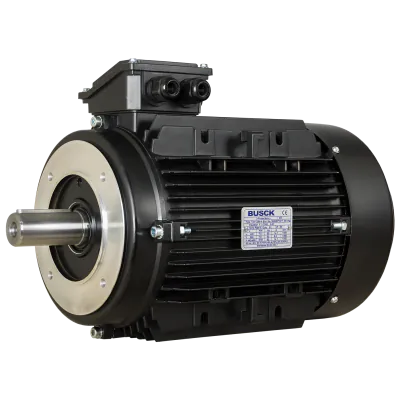

Busck AC motor T3A132M-8, 3kW, 725RPM, 230/400V, 50Hz, aluminium

Busck AC motor T3A132M-8, 3kW, 725RPM, 230/400V, 50Hz, aluminium

T3A132M-8

The Busck AC motor is a 3-phase asynchronous motor designed to handle demanding tasks. It is both robust and flexible, making it suitable for a wide range of applications, both in industrial and commercial environments.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment: 27-12-2024

More Information

IP classification

IP 55

Producer

Busck

Model

T3A132M-8

Speed (RPM)

725

Rated output (kW)

Efficiency (% FL)

83.5

Voltage connection (Δ/Y)

230/400

Rated current at voltage

13.88/7.98

Nominal torque (Nm)

39.52

Start current ratio (IA/IN)

6.1

Mounting

B14

IEC norm

132

BCD

165

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø38

Cooling

TEFC

Thermal protection

PTO

Description

Key features:

IP55 rating: The motor boasts an IP55 rating, providing protection against dust and water ingress, enhancing its longevity and reliability.
High power output: With a power rating of 3kW, this motor delivers performance for various applications.
Efficient operation: The motor operates at 725RPM.
IE3 efficiency class: Compliant with the highest efficiency standards, the motor reduces energy consumption.
Dual voltage capability: It operates seamlessly on both 230V and 400V power supplies, offering versatility in different environments.
B14 flange mounting: The B14 flange ensures easy and secure mounting.

Specifications:
