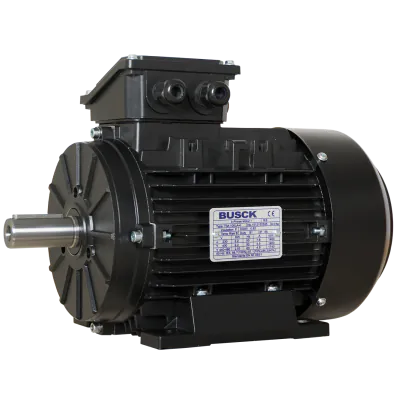

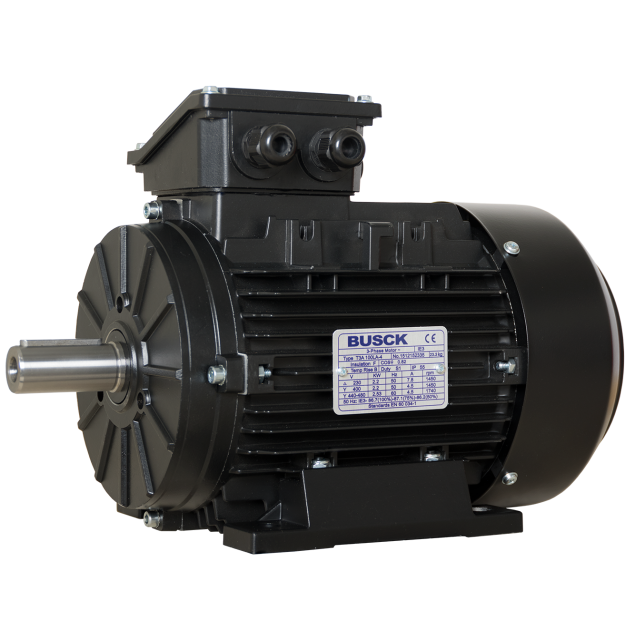

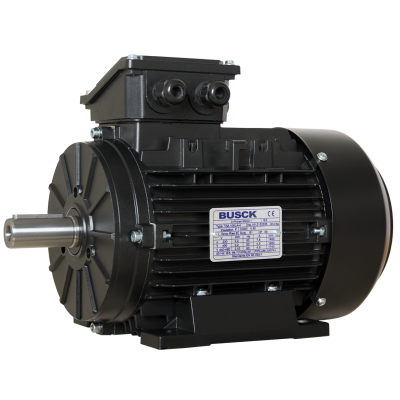

Busck AC motor T3A100LA-2B3, 3kW, 2910RPM, 230/400V, 50Hz, aluminium

Busck AC motor T3A100LA-2B3, 3kW, 2910RPM, 230/400V, 50Hz, aluminium

T3A100LA-2B3

The Busck AC Motor is a three-phase synchronous motor designed to excel in demanding environments, making it ideal for a wide range of applications. With its aluminum construction and IP55 rating, this motor is built to withstand harsh conditions and deliver consistent performance.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment: 23-02-2025

More Information

IP classification

IP 55

Model

T3A100LA-2B3

Speed (RPM)

2910

Rated output (kW)

Efficiency (% FL)

87.1

Voltage connection (Δ/Y)

230/400

Rated current at voltage

9.74/5.6

Nominal torque (Nm)

9.85

Start current ratio (IA/IN)

9.4

Mounting

IEC norm

100

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

Thermal protection

PTO

Description

Key features:

Robust and flexible design for reliable performance in challenging environments
IP55 rating provides protection against dust and water, enhancing motor longevity
High power output of 3kW for efficient operation in various industrial applications
2910RPM rotational speed for quick and responsive performance
Dual voltage options of 230/400V to accommodate diverse power supplies
B3 flange allows for easy and secure mounting, saving installation time
IE3 efficiency rating, guaranteeing energy-saving capabilities

Specifications:
