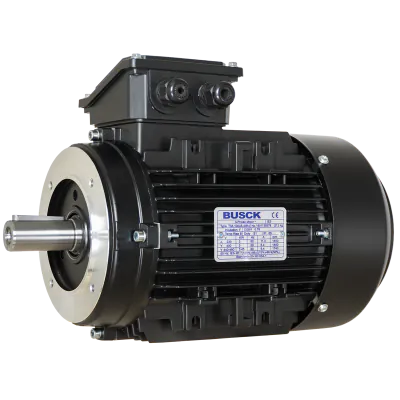

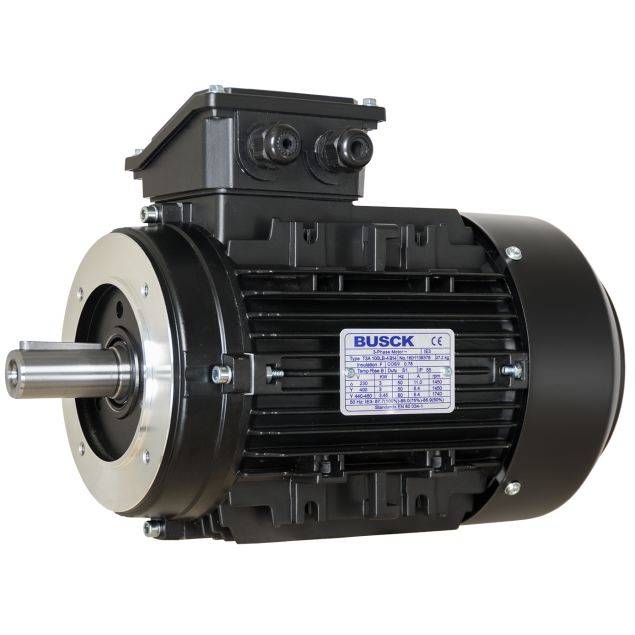

Busck AC motor T3A100LA-2, 3kW, 2910RPM, 230/400V, 50Hz, aluminium
T3A100LA-2The Busck AC motor is a three-phase synchronous motor designed to excel in challenging environments, demonstrating its ability to withstand harsh demands. Crafted with high quality materials and precision engineering, this motor ensures a reliable and efficient operation for various applications.
Specifications
Product description
Downloads
€752.00
€752.00
Made to order
Expected shipment: 30-04-2025
More Information
IP classification
IP 55
Model
T3A100LA-2
Speed (RPM)
2910
Rated output (kW)
3
Efficiency (% FL)
87.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
9.74/5.6
Nominal torque (Nm)
9.85
Start current ratio (IA/IN)
9.4
Mounting
B14
IEC norm
100
BCD
130
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Description
Key features:
- High performance: This motor delivers performance with a power output of 3kW and a speed of 2910RPM.
- IP55 rating: The motor comes with an IP55 rating, providing protection against dust and water, making it suitable for both indoor and outdoor use.
- B14 flange: The motor features a B14 flange design, allowing for easy and secure installation in different setups.
- Energy efficient: With an IE3 efficiency rating, the motor operates with high energy efficiency, contributing to cost savings.
Specifications:
- Durable build: Constructed with aluminum materials.
- Wide temperature range: -20°C to +40°C.
