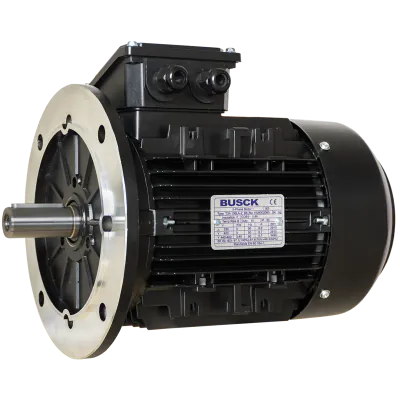

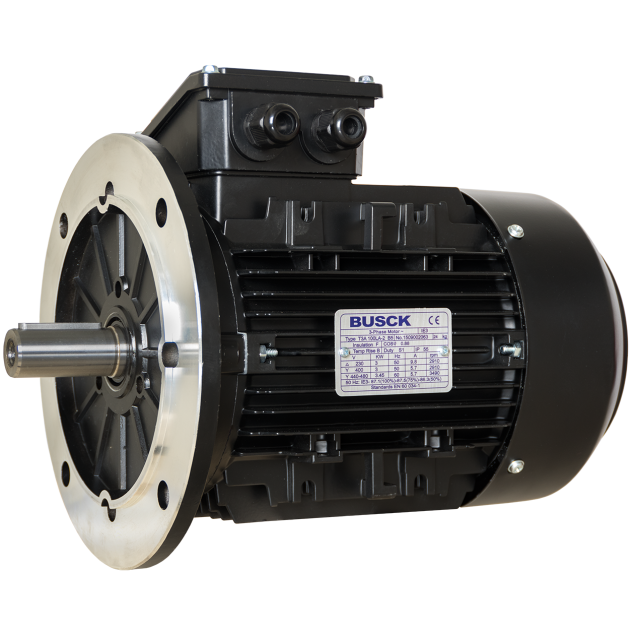

Busck AC motor T3A100LB-4B5, 3kW, 1400RPM, B5, 230/400, 50 Hz, Aluminium

T3A100LB-4B5

The Busck AC Motor T3A100LB-4B5 is a reliable electric motor designed for industrial applications. It delivers a rated output of 3 kW and operates at a speed of 1400 RPM with 4 poles. The motor features a shaft diameter of Ø28 mm and a B5 mounting flange. Built according to IEC 100 standard, it complies with the IE3 efficiency class and uses TEFC cooling. The housing is made of aluminium to support durability and heat dissipation. It is IP55 rated for protection against dust and water. The motor supports a voltage connection of 230/400V and has a bolt circle diameter (BCD) of 215 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A100LB-4B5

Speed (RPM)

1400

Rated output (kW)

Efficiency (% FL)

87.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

10.96/6.3

Nominal torque (Nm)

19.76

Start current ratio (IA/IN)

8.1

Mounting

BCD

215

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: Provides reliable protection against dust and water, safeguarding the motor from external contaminants.
High power output: With a power rating of 3kW, this motor delivers consistent and powerful performance.
High speed: Operating at 1450RPM, it efficiently meets the demands of high-speed applications.
B5 flange: Facilitates easy mounting and integration into various machinery setups.

Specifications:
