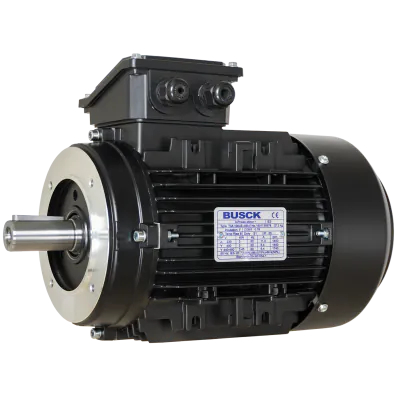

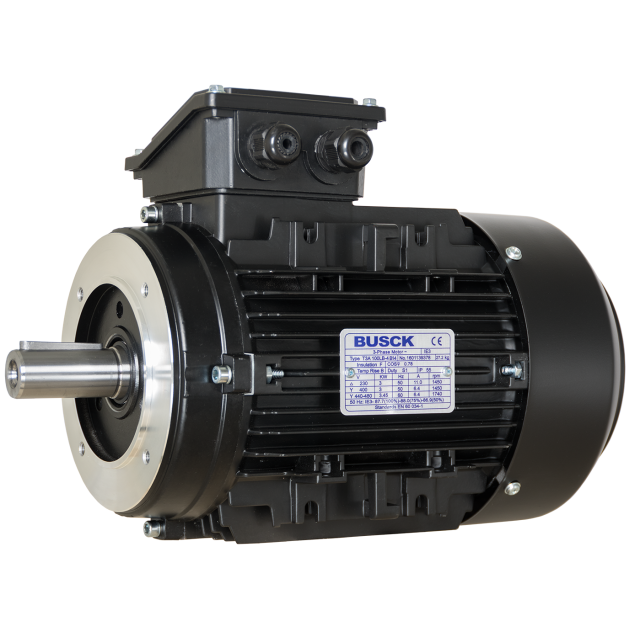

Busck AC motor T3A100LB-4A22, 3kW, 1450RPM, 230/400V, 50Hz, ATEX 22, aluminium
T3A100LB-4A22
Specifications
Product description
Downloads
€885.51
In stock
Expected shipment: 12-11-2024
More Information
IP classification
IP 65
Producer
Busck
Model
T3A100LB-4A22
Speed (RPM)
1450
Rated output (kW)
3
Efficiency (% FL)
87.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
10.96/6.3
Nominal torque (Nm)
19.76
Start current ratio (IA/IN)
8.1
Mounting
B14
IEC norm
100
BCD
130
Poles
4
Certifications
ATEX 2-22
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Robust construction: Designed to withstand tough industrial environments, ensuring long-lasting reliability and durability.
- ATEX 22 certified: The motors are certified to meet the highest safety standards. With ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 and ATEX II 3G Ex nA IIC T4 Gc Zone 2 certifications.
- High performance: Boasting a power output of 3kW and a steady 1450RPM, delivering optimal efficiency and performance in various industrial settings.
- IP65 rating: Offers protection against dust and water ingress, safeguarding the motor from external elements and enhancing its longevity.
- B14 flange mounting: Facilitates easy and secure installation, providing a convenient solution for integration into existing setups.
- High efficiency (IE3-87.7): Engineered to meet stringent energy efficiency standards, reducing operational costs and environmental impact.
Specifications:
- Aluminum housing: The motor features an aluminum housing.
- Wide temperature range: From -20°C to +40°C.
