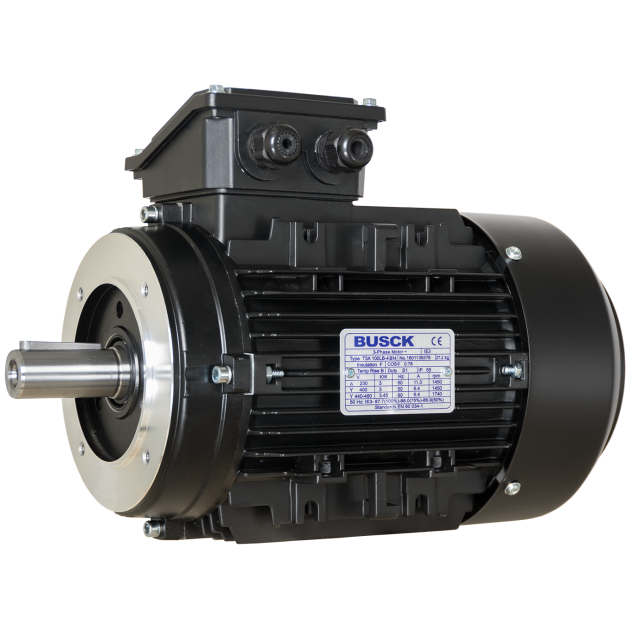

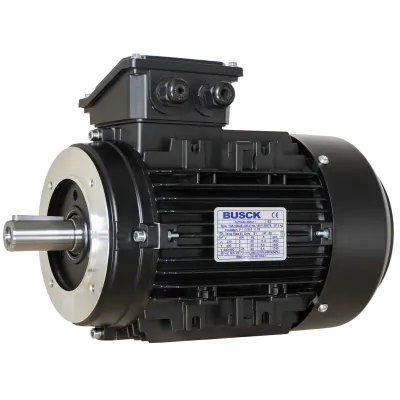

Busck AC motor T3A100LB-4, 3kW, 1450RPM, B14, 230/400, 50 Hz, Aluminium

T3A100LB-4

The Busck AC Motor T3A100LB-4 is a 3-phase, asynchronous electric motor designed for industrial applications. It delivers a rated output of 3 kW and operates at a speed of 1450 RPM. This motor features a B14 mounting and a shaft diameter of Ø28 mm, compliant with the IEC 100 frame size standard. Constructed with a durable aluminium housing, it uses TEFC cooling and adheres to the IE3 efficiency standard. The motor has 4 poles, a voltage connection of 230/400 V, and is protected according to IP55 classification. The bolt circle diameter (BCD) is 130 mm, ensuring compatibility with standard equipment interfaces.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T3A100LB-4

Speed (RPM)

1450

Rated output (kW)

Efficiency (% FL)

87.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

10.96/6.3

Nominal torque (Nm)

19.76

Start current ratio (IA/IN)

8.1

Mounting

B14

BCD

130

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: Equipped with an IP55 rating, the motor is protected against dust ingress and water jets, making it suitable for both indoor and outdoor installations.
3kW power: The motor boasts a power rating of 3kW, providing substantial output for various industrial processes.
1450RPM: Operating at 1450 revolutions per minute.
230/400V voltage: This motor is designed to work efficiently with both 230V and 400V power supply configurations.
B14 flange: Featuring a B14 flange, the motor is easy to mount and integrate into existing setups.
IE3 efficiency: The motor is built with IE3 efficiency, optimizing energy usage and reducing operational costs.
