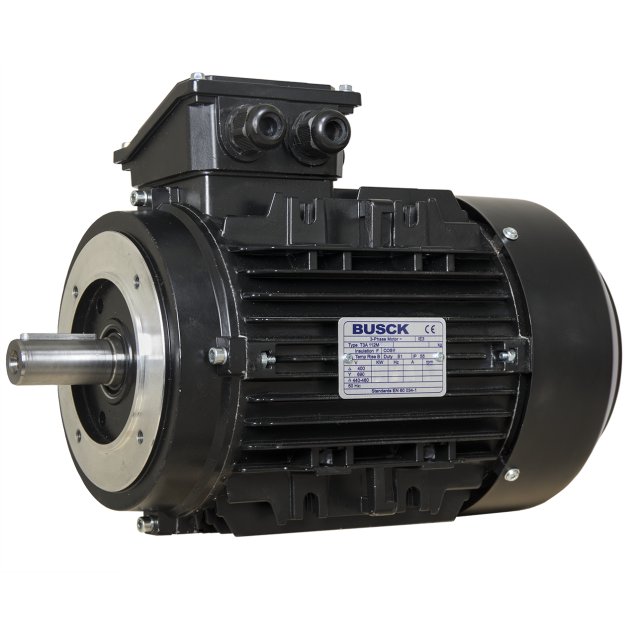

Busck AC motor T3A112M-6, 2.2kW, 965RPM, 230/400V, 50Hz, aluminium
T3A112M-6The Busck AC motor is a three-phase synchronous motor, specifically designed to withstand the harshest demands. Crafted with precision and using high quality materials, this electric motor delivers performance and reliability for a wide range of industrial applications.
Specifications
Product description
Downloads
€965.42
Made to order
Expected shipment: 09-12-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A112M-6
Speed (RPM)
965
Rated output (kW)
2.2
Efficiency (% FL)
84.3
Voltage connection (Δ/Y)
230/400
Rated current at voltage
9.57/5.5
Nominal torque (Nm)
21.77
Start current ratio (IA/IN)
5.5
Mounting
B14
IEC norm
112
BCD
130
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Weather-resistant: IP55 rating provides protection against dust and water, making it suitable for both indoor and outdoor environments.
- Powerful performance: Boasting a powerful 2.2kW output, this motor can handle heavy-duty tasks.
- Optimal speed: Running at 965RPM, it delivers efficient performance across various applications.
- High efficiency: IE3 efficiency rating ensures reduced energy consumption, promoting sustainability.
- Voltage flexibility: Capable of operating at 230/400V.
- Easy installation: Designed with a B14 flange.
Specifications:
- Durable build: Constructed with a sturdy aluminum frame.
- Wide temperature range: -20°C to +40°C.
