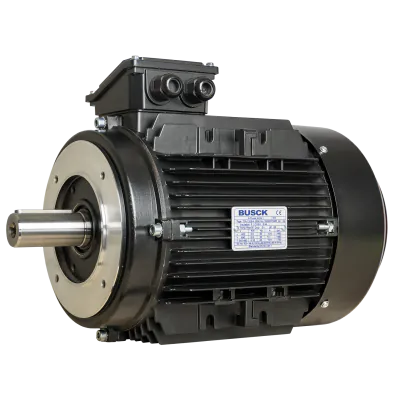

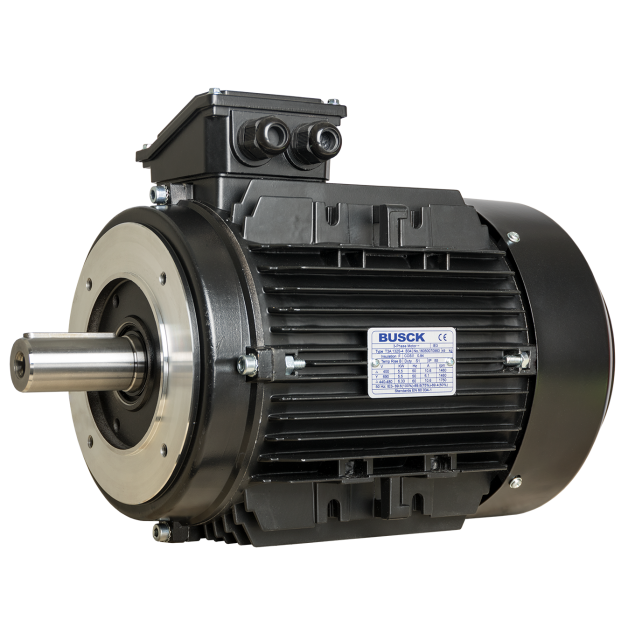

Busck AC motor T3A132S-8, 2.2kW, 725RPM, 230/400V, 50Hz, aluminium
T3A132S-8The Busck AC motor is a three-phase synchronous motor designed to excel in demanding environments. With its robust construction and high-performance capabilities, it is engineered to endure harsh conditions while delivering performance.
Specifications
Product description
Downloads
€1,827.06
In stock
Expected shipment: 27-12-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A132S-8
Speed (RPM)
725
Rated output (kW)
2.2
Efficiency (% FL)
81.9
Voltage connection (Δ/Y)
230/400
Rated current at voltage
10.21/5.87
Nominal torque (Nm)
28.98
Start current ratio (IA/IN)
5.4
Mounting
B14
IEC norm
132
BCD
165
Poles
8
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- High performance: Powerful 2.2kW motor with a rated speed of 725RPM, providing efficient and consistent operation.
- Energy efficiency: Boasting an IE3 energy efficiency rating, contributing to reduced energy consumption.
- IP55 rating: The IP55-rated enclosure protects the motor from dust and water ingress, ensuring optimal performance even in challenging environments.
- Wide voltage range: The motor supports a voltage range of 230/400V, making it adaptable to various power supply configurations.
- B14 flange: Equipped with a B14 flange, facilitating easy mounting and integration into different applications.
Specifications:
- Aluminum housing: The motor's aluminum housing ensures lightweight durability.
- Temperature tolerance: -20°C to +40°C.
