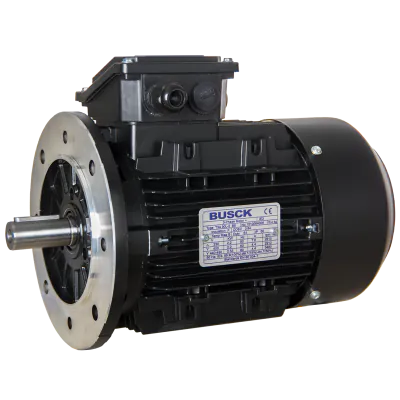

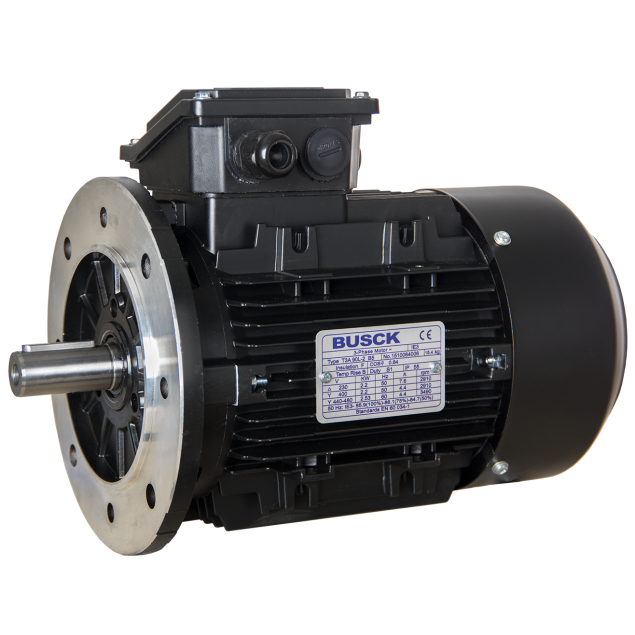

Busck AC motor T3A90L-2B5, 2,2kW, 2910RPM, B5, 230/400, 50 Hz, Aluminium

T3A90L-2B5

The Busck AC Motor T3A90L-2B5 is a robust electric motor designed for industrial applications requiring reliable performance. This model features a power output of 2.2 kW and a speed of 2910 RPM, conforming to the IE3 efficiency standard. Built according to IEC frame size 90, it is equipped with 2 poles and a B5 flange mounting. The motor casing is made of aluminium and uses TEFC cooling for enclosed protection. It operates on a 230/400 V connection, with a shaft diameter of Ø24 mm and a Bolt Circle Diameter (BCD) of 165 mm. The IP55 classification ensures resistance to dust and water.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A90L-2B5

Speed (RPM)

2910

Rated output (kW)

2.2

Efficiency (% FL)

85.9

Voltage connection (Δ/Y)

230/400

Rated current at voltage

7.83/4.5

Nominal torque (Nm)

7.22

Start current ratio (IA/IN)

8.1

Mounting

BCD

165

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø24

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: With an IP55 ingress protection rating, the motor is safeguarded against dust and water spray, making it suitable for use in harsh and dusty environments.
High power output: Boasting a powerful 2.2kW capacity, the motor delivers reliable performance, allowing it to handle demanding tasks with ease.
High-speed operation: The motor operates at a rapid 2910RPM, ensuring efficient performance and reduced energy consumption.
Versatile voltage: Designed to accommodate a range of power supplies, the motor can operate on both 230V and 400V systems.
B5 flange: The B5 flange configuration ensures seamless integration and compatibility with various industrial setups.
IE3-85.9 efficiency: The motor complies with IE3 standards, offering an impressive efficiency rating of 85.9%, contributing to energy savings and reduced operational costs.

Specifications:

Aluminium construction: The motor's durable aluminium build ensures longevity and enhances its heat dissipation capabilities, preventing overheating during extended operations.
Wide temperature range: Capable of functioning in temperatures ranging from -20°C to +40°C, the motor adapts to diverse climatic conditions without compromising performance.
