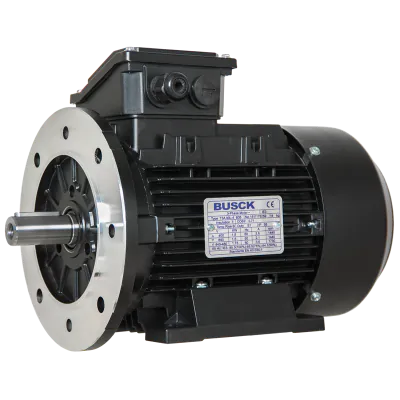

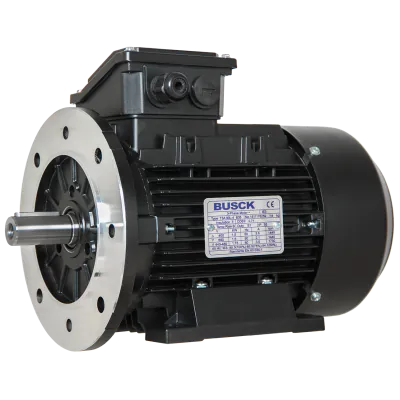

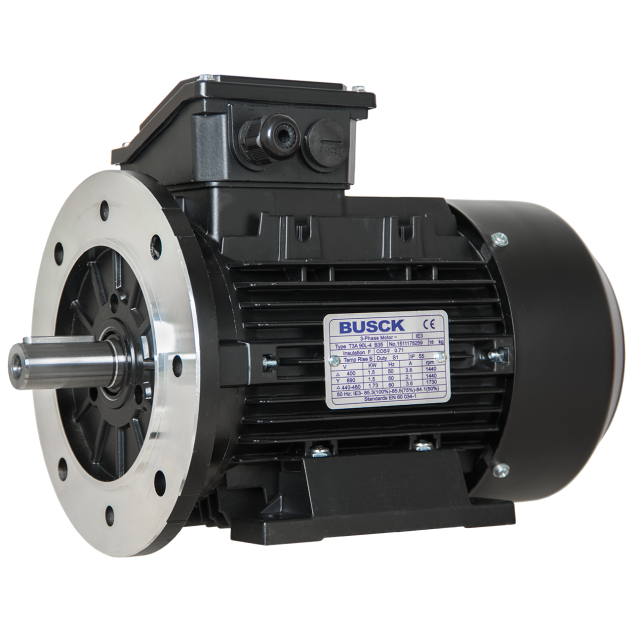

Busck AC motor T3A90L-2B35, 2.2kW, 2910RPM, 230/400V, 50Hz, aluminium
T3A90L-2B35The Busck AC motor is a three-phase synchronous motor designed to meet the toughest demands in industrial applications. With its robust build and flexible performance, this motor ensures reliable operation even in harsh conditions. Whether it's in manufacturing, construction, or any other heavy-duty setting, the Busck AC motor delivers exceptional power and efficiency.
Specifications
Product description
Downloads
€548.00
In stock
Expected shipment: 23-02-2025
More Information
IP classification
IP 55
Model
T3A90L-2B35
Speed (RPM)
2910
Rated output (kW)
2.2
Efficiency (% FL)
85.9
Voltage connection (Δ/Y)
230/400
Rated current at voltage
7.83/4.5
Nominal torque (Nm)
7.22
Start current ratio (IA/IN)
8.1
Mounting
B35
IEC norm
90
Poles
2
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Weatherproof design: Rated IP55, the motor is protected against dust and water ingress, making it suitable for both indoor and outdoor use.
- High power output: The motor provides an impressive power rating of 2.2kW, delivering consistent and reliable performance.
- High speed capability: With a rotational speed of 2910RPM, the motor can handle demanding tasks with ease.
- Versatile voltage: The motor can operate on both 230V and 400V power supplies, offering flexibility in various electrical setups.
- B35 flange mounting: The B35 flange design allows for easy and secure mounting in a variety of applications.
- Energy-efficient: With an IE3-85.9 efficiency rating, the motor ensures minimal energy wastage, reducing operational costs.
Specifications:
- Durable construction: Crafted from high-quality aluminum, the motor boasts exceptional strength and durability, ensuring a long operational life.
- Wide temperature range: Capable of operating in temperatures ranging from -20°C to +40°C, making it suitable for diverse environments.
