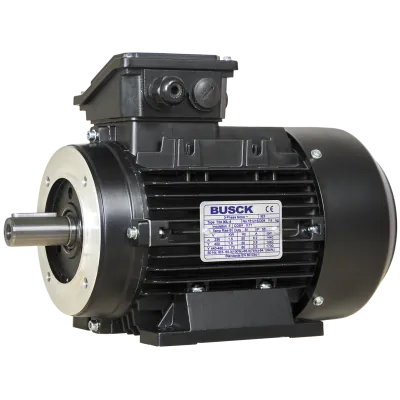

Busck AC motor T3A90L-2B34, 2,2kW, 2910RPM, B34, 230/400, 50 Hz, Aluminium

T3A90L-2B34

The Busck AC Motor T3A90L-2B34 is a 2-pole electric motor designed for industrial applications. It features a rated output of 2.2 kW and a rated speed of 2800 RPM with a maximum speed of 2910 RPM. The motor is built according to IEC size 90 and adheres to the IE3 efficiency standard. It utilizes TEFC (Totally Enclosed Fan Cooled) cooling and is made from aluminium for reduced weight and corrosion resistance. The motor has a B34 mounting configuration and a shaft diameter of Ø24 mm. It supports a voltage connection of 230/400 V at 50 Hz and is equipped with IP55 protection for use in demanding environments. The bolt circle diameter (BCD) is 115 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A90L-2B34

Speed (RPM)

2910

Rated output (kW)

2.2

Efficiency (% FL)

85.9

Voltage connection (Δ/Y)

230/400

Rated current at voltage

7.83/4.5

Nominal torque (Nm)

7.22

Start current ratio (IA/IN)

8.1

Mounting

B34

BCD

115

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø24

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: The IP55 rating provides excellent protection against dust and water, making the motor suitable for both indoor and outdoor installations.
High power output: With a power rating of 2.2kW, this motor delivers efficient and consistent performance for various industrial tasks.
High speed: Operating at 2910RPM, the motor enables swift and efficient operation, optimizing productivity.
Dual voltage compatibility: The motor can operate at 230V or 400V, providing flexibility for different power supply setups.
B34 flange: The B34 flange design allows for easy installation and integration with different machinery configurations.
High energy efficiency: With an IE3-85.9 efficiency class, the motor helps reduce energy consumption, leading to cost savings and environmental benefits.

Specifications:

Robust build: Crafted from high-quality aluminium, this motor is built to withstand harsh demands and heavy-duty operations, ensuring long-lasting performance.
Wide temperature range: The motor is designed to function flawlessly in temperatures ranging from -20°C to +40°C, ensuring reliable performance in various climates.
