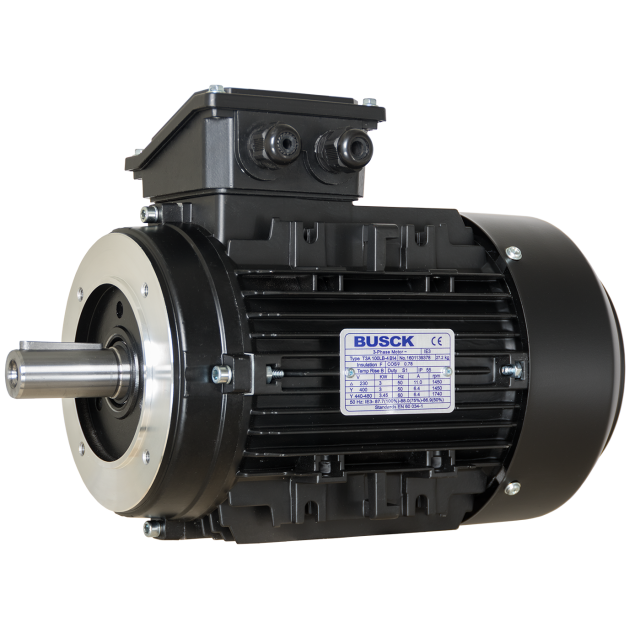

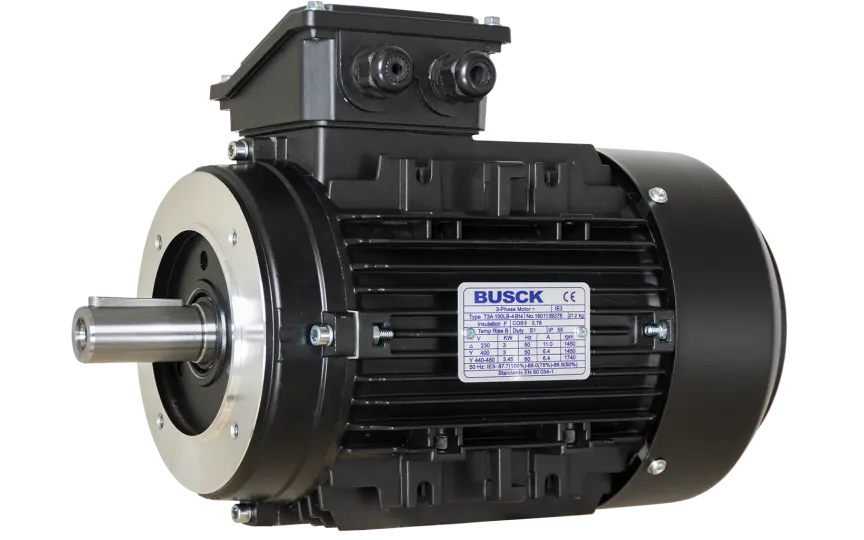

Description
Key features:
- IP65 rating: The IP65 ingress protection rating ensures resistance against dust, dirt, and water.
- ATEX 22 certification: ensures that our motors meet the most stringent safety standards, as evidenced by their compliance with ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 and ATEX II 3G Ex nA IIC T4 Gc Zone 2 certifications.
- 2.2kW power output: With a robust power output of 2.2kW, the motor delivers high performance and efficiency.
- 1450RPM speed: The motor operates at a speed of 1450 revolutions per minute, optimizing its performance for various industrial applications.
- 230/400V voltage: The motor supports a dual voltage of 230/400V, offering versatility in power supply options.
- B14 flange: The B14 flange design simplifies installation and provides a secure mounting for seamless integration into your setup.
- IE3 efficiency: The motor boasts an IE3 efficiency rating of, ensuring energy-saving operation and reduced operational costs.
Specifications:
- Aluminum construction: The motor has a sturdy aluminum build.
- Temperature range: -20°C to +40°C.
Specifications
IP classification
IP 65
Model
T3A100LA-4A22
Speed (RPM)
1450
Rated output (kW)
2.2
Efficiency (% FL)
86.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
7.77/4.47
Nominal torque (Nm)
14.49
Start current ratio (IA/IN)
7.9
Mounting
B14
BCD
130
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Country of origin
CHN
HS-Code
85015220.000000
ERP net weight (Kg)
21.000000
Foreign trade
HS-Code
85015220
ERP net weight (Kg)
21.00
Country of origin
CHN
