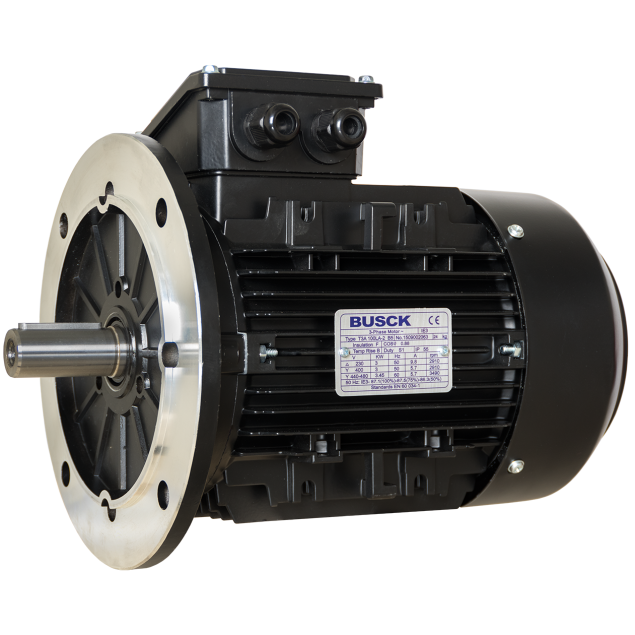

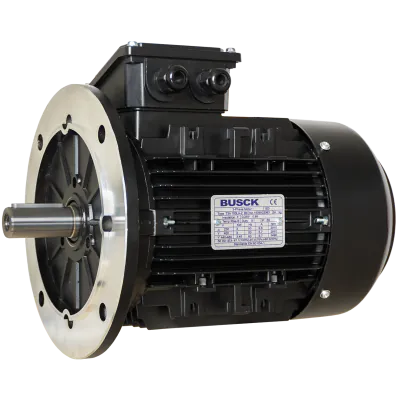

Busck AC motor T3A100LA-4B5, 2,2kW, 1450RPM, B5, 230/400, 50 Hz, Aluminium

T3A100LA-4B5

The Busck AC Motor T3A100LA-4B5 is a three-phase electric motor designed for industrial applications. It delivers a rated output of 2.2 kW with a rated speed of 1400 RPM and a maximum speed of 1450 RPM. The motor features B5 flange mounting and complies with the IE3 efficiency standard, in line with IEC 60034. Constructed from aluminium, it supports a shaft diameter of Ø28 mm and a BCD of 215 mm. Cooled by TEFC (Totally Enclosed Fan Cooled) design, it meets IP55 protection class requirements. The motor operates on a 230/400V connection and is built according to IEC size 100 with 4 poles.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A100LA-4B5

Speed (RPM)

1450

Rated output (kW)

2.2

Efficiency (% FL)

86.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

7.77/4.47

Nominal torque (Nm)

14.49

Start current ratio (IA/IN)

7.9

Mounting

BCD

215

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: With an IP55 rating, the motor is fully protected against dust and water, making it suitable for various industrial applications.
High power output: Boasting a powerful 2.2kW output, this motor delivers reliable and efficient performance in a wide range of tasks.
Steady speed: Operating at 1450RPM, the motor maintains a consistent speed, ensuring smooth and efficient operation.
Voltage flexibility: The motor is designed to handle both 230V and 400V power inputs.
B5 flange: Featuring a B5 flange, the motor's mounting configuration ensures easy installation.
High energy efficiency: With an IE3 efficiency class, this motor maximizes energy usage and minimizes wastage.
